7202CTYNSULP4 NSK super precision bearings
Also known as : B7202-C-T-P4S-UL
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 9.1 kN
- Basic static load rating: 4.55 kN

NSK 7202CTYNSULP4 Bearing
NSK 7202CTYNSULP4 Bearing details
Part Number | 7202CTYNSULP4 | |
---|---|---|
Brand | NSK | |
Description |
Angular Contact Ball Bearings C :Contact Angle of 15° |
|
Boundary Dimensions (mm) | ||
d | 15 | |
D | 35 | |
B | 11 | |
r (min.) | 0.6 | |
r1 (min.) | 0.3 | |
Basic Load Ratings (kN) | ||
Cr | 9.1 | Dynamic |
C0r | 4.55 | Static |
Limiting Speeds (min-1) | ||
Grease | 46000 | |
Oil | 70000 | |
Calculation data | ||
Permissible axial load | 3.85 kN | |
Contact Angle | 15 | |
Factor f0 | 13.2 | |
a | 8.8 mm | Effective load center |
Reference Dimensions (mm) | ||
da (min.) | 20 | |
Da (max.) | 30 | |
Db (max.) | 32.5 | |
ra (max.) | 0.6 | |
rb (max.) | 0.3 |

NSK 7202CTYNSULP4 bearing cross reference

FAG 7202-B-XL-JP bearing
15mm x 35mm x 11mm

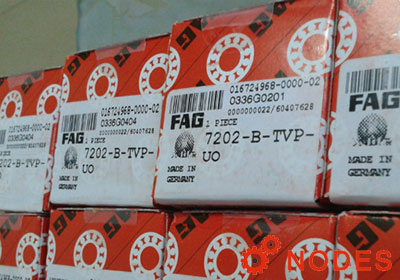

FAG 7202-B-TVP-UO bearing
15mm x 35mm x 11mm

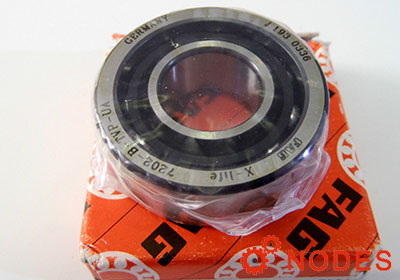

FAG 7202-B-TVP-UA bearing
