7212CTYNSULP4 NSK super precision bearings
Also known as :
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 22 mm
- Basic dynamic load rating: 67.5 kN
- Basic static load rating: 49 kN

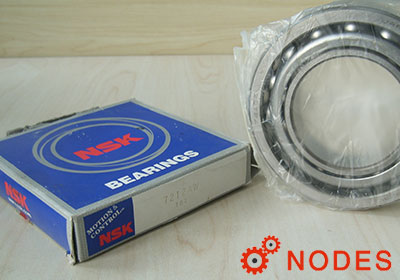

NSK 7212CTYNSULP4 Bearing
NSK 7212CTYNSULP4 Bearing details
| Part Number | 7212CTYNSULP4 | |
|---|---|---|
| Brand | NSK | |
| Description |
Angular Contact Ball Bearings C :Contact Angle of 15° |
|
| Boundary Dimensions (mm) | ||
| d | 60 | |
| D | 110 | |
| B | 22 | |
| r (min.) | 1.5 | |
| r1 (min.) | 1 | |
| Basic Load Ratings (kN) | ||
| Cr | 67.5 | Dynamic |
| C0r | 49 | Static |
| Limiting Speeds (min-1) | ||
| Grease | 13600 | |
| Oil | 20600 | |
| Calculation data | ||
| Permissible axial load | 34 kN | |
| Contact Angle | 15 | |
| Factor f0 | 14.4 | |
| a | 22.4 mm | Effective load center |
| Reference Dimensions (mm) | ||
| da (min.) | 69 | |
| Da (max.) | 101 | |
| Db (max.) | 104 | |
| ra (max.) | 1.5 | |
| rb (max.) | 0.8 | |
