NSK 21318EAE4 Spherical roller bearings
Also known as : 21318EAE4, 21318CC/W33
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 43 mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 450 kN
NSK 21318EAE4 Bearing

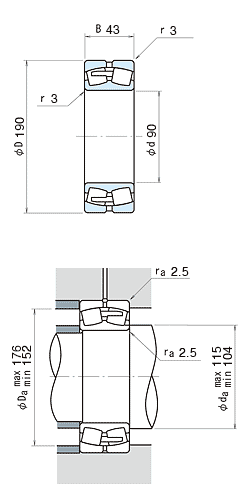

NSK 21318EAE4 Bearing details
| model | 21318EAE4 |
|---|---|
| d | 90 mm |
| D | 190 mm |
| B | 43.0 mm |
| rmin. | 3.0 mm |
| Cr |
415000 N 42000 kgf |
| C0r |
450000 N 46000 kgf |
| Limiting speeds | 2800 min-1 (Grease) |
| Limiting speeds | 3600 min-1 (Oil) |
| da min | 104 mm |
| da max | 115.000 mm |
| Da max | 176 mm |
| Da min | 152 mm |
| ra | 2.5 mm |
| Constant | 0.24 |
| Y2 | 4.3 Axial Load Factors |
| Y3 | 2.9 Axial Load Factors |
| Y0 | 2.8 Axial Load Factors |
| Mass | 6.10 kg (approx.) |
NSK 21318EAE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
NSK 21318EAE4 bearing cross reference
FAG 21318-E1-XL bearing
90mm x 190mm x 43mm
NSK 22218EAE4 bearing
90mm x 160mm x 40.0mm
NSK 22318EAE4 bearing
90mm x 190mm x 64.0mm
NSK 21318EAKE4 bearing
90mm x 190mm x 43.0mm
NSK 22218EAKE4 bearing
90mm x 160mm x 40.0mm
NSK 22318EAKE4 bearing
90mm x 190mm x 64.0mm
NSK 23218CKE4 bearing
90mm x 160mm x 52.4mm
NSK 23218CE4C3 bearing
90mm x 160mm x 52.4mm
FAG 21318-E1-XL-K bearing
90mm x 190mm x 43mm
