NSK 22213EAE4 Spherical roller bearings
Also known as : 22213EAE4, 22213CC/W33
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 31 mm
- Basic dynamic load rating: 221 kN
- Basic static load rating: 230 kN
NSK 22213EAE4 Bearing

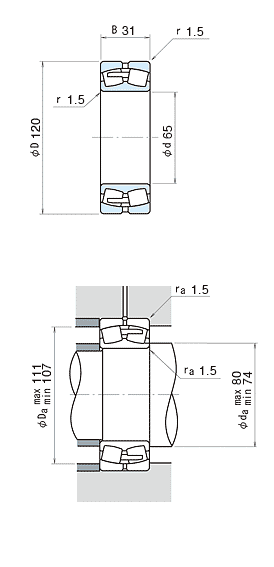

NSK 22213EAE4 Bearing details
model | 22213EAE4 |
---|---|
d | 65 mm |
D | 120 mm |
B | 31.0 mm |
rmin. | 1.5 mm |
Cr |
221000 N 22500 kgf |
C0r |
230000 N 23500 kgf |
Limiting speeds | 4300 min-1 (Grease) |
Limiting speeds | 5300 min-1 (Oil) |
da min | 74 mm |
da max | 80.000 mm |
Da max | 111 mm |
Da min | 107 mm |
ra | 1.5 mm |
Constant | 0.24 |
Y2 | 4.2 Axial Load Factors |
Y3 | 2.8 Axial Load Factors |
Y0 | 2.7 Axial Load Factors |
Mass | 1.51 kg (approx.) |
NSK 22213EAE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
