NSK 22219EAE4 Spherical roller bearings
Also known as : 22219EAE4, 22219CC/W33
- Inside Diameter: 95 mm
- Outside Diameter: 170 mm
- Width: 43 mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 450 kN
NSK 22219EAE4 Bearing

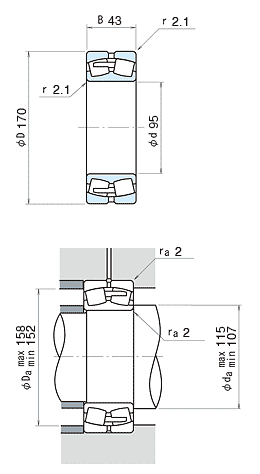

NSK 22219EAE4 Bearing details
model | 22219EAE4 |
---|---|
d | 95 mm |
D | 170 mm |
B | 43.0 mm |
rmin. | 2.1 mm |
Cr |
415000 N 42000 kgf |
C0r |
450000 N 46000 kgf |
Limiting speeds | 3000 min-1 (Grease) |
Limiting speeds | 3800 min-1 (Oil) |
da min | 107 mm |
da max | 115.000 mm |
Da max | 158 mm |
Da min | 152 mm |
ra | 2.0 mm |
Constant | 0.24 |
Y2 | 4.3 Axial Load Factors |
Y3 | 2.9 Axial Load Factors |
Y0 | 2.8 Axial Load Factors |
Mass | 4.04 kg (approx.) |
NSK 22219EAE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
