NSK 22224EAE4C3 Spherical roller bearings
Also known as : 22224EAE4C3, 22224CC/W33C3
- Inside Diameter: 120 mm
- Outside Diameter: 215 mm
- Width: 58 mm
- Basic dynamic load rating: 685 kN
- Basic static load rating: 765 kN
NSK 22224EAE4C3 Bearing

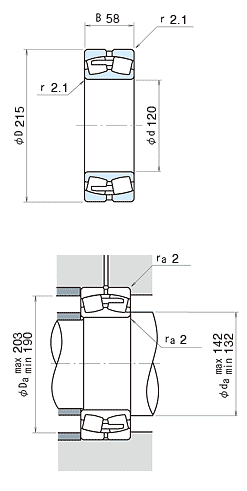

NSK 22224EAE4C3 Bearing details
model | 22224EAE4C3 |
---|---|
d | 120 mm |
D | 215 mm |
B | 58.0 mm |
rmin. | 2.1 mm |
Cr |
685000 N 70000 kgf |
C0r |
765000 N 78000 kgf |
Limiting speeds | 2400 min-1 (Grease) |
Limiting speeds | 3000 min-1 (Oil) |
da min | 132 mm |
da max | 142.000 mm |
Da max | 203 mm |
Da min | 190 mm |
ra | 2.0 mm |
Constant | 0.25 |
Y2 | 3.9 Axial Load Factors |
Y3 | 2.7 Axial Load Factors |
Y0 | 2.6 Axial Load Factors |
Mass | 8.80 kg (approx.) |
NSK 22224EAE4C3 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
