NSK 22311EAE4C3 Spherical roller bearings | 55x120x43.0mm
Also known as : 22311EAE44C3
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 43 mm
- Basic dynamic load rating: 292 kN
- Basic static load rating: 292 kN
NSK 22311EAE44C3 Bearing
NSK 22311EAE44C3 Bearing details
| Bearing number | 22311EAE44C3 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 55 mm |
| D | 120 mm |
| B | 43.0 mm |
| rmin. | 2.0 mm |
| Cr |
292000 N 29800 kgf |
| C0r |
292000 N 29800 kgf |
| Limiting speeds | 3800 min-1 (Grease) |
| Limiting speeds | 4800 min-1 (Oil) |
| da min | 65 mm |
| da max | 73.000 mm |
| Da max | 110 mm |
| Da min | 103 mm |
| ra | 2.0 mm |
| Constant | 0.34 |
| Y2 | 2.9 Axial Load Factors |
| Y3 | 2 Axial Load Factors |
| Y0 | 1.9 Axial Load Factors |
| Mass | 2.30 kg (approx.) |
NSK 22311EAE44C3 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
NSK 22311EAE44C3 bearing cross reference
FAG 22311-E1-XL bearing
55mm x 120mm x 43mm

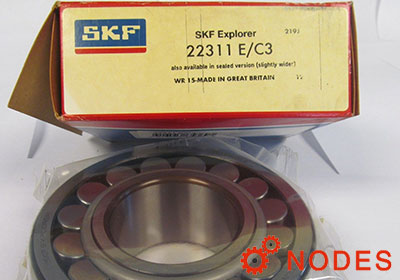

SKF 22311E/C3 bearing
55mm x 120mm x 43mm
NSK 21311EAE4 bearing
55mm x 120mm x 29.0mm
NSK 21311EAKE4 bearing
55mm x 120mm x 29.0mm
NSK 22211EAE4 bearing
55mm x 100mm x 25.0mm
NSK 22211EAKE4C3 bearing
55mm x 100mm x 25.0mm
NSK 22311EAKE4 bearing
55mm x 120mm x 43.0mm
FAG 22311-E1-XL-K bearing
55mm x 120mm x 43mm
FAG WS22311-E1-XL-2RSR bearing
55mm x 120mm x 49mm
NTN 22311EAD1 bearing
55mm x 120mm x 43mm
NTN 22311EMD1 bearing
55mm x 120mm x 43mm
