NSK 23028CAME4 Spherical roller bearings
Also known as : 23028CAME4, 23028CC/W33
- Inside Diameter: 140 mm
- Outside Diameter: 210 mm
- Width: 53 mm
- Basic dynamic load rating: 420 kN
- Basic static load rating: 715 kN
NSK 23028CAME4 Bearing

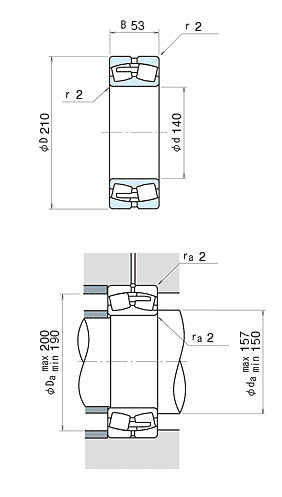

NSK 23028CAME4 Bearing details
model | 23028CAME4 |
---|---|
d | 140 mm |
D | 210 mm |
B | 53.0 mm |
rmin. | 2.0 mm |
Cr |
420000 N 43000 kgf |
C0r |
715000 N 73000 kgf |
Limiting speeds | 1600 min-1 (Grease) |
Limiting speeds | 1900 min-1 (Oil) |
da min | 150 mm |
da max | 157.000 mm |
Da max | 200 mm |
Da min | 190 mm |
ra | 2.0 mm |
Constant | 0.22 |
Y2 | 4.5 Axial Load Factors |
Y3 | 3 Axial Load Factors |
Y0 | 2.9 Axial Load Factors |
Mass | 6.49 kg (approx.) |
NSK 23028CAME4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
