NSK 23030CDE4 Spherical roller bearings
Also known as : 23030CDE4, 23030CC/W33
- Inside Diameter: 150 mm
- Outside Diameter: 225 mm
- Width: 56 mm
- Basic dynamic load rating: 470 kN
- Basic static load rating: 815 kN
NSK 23030CDE4 Bearing

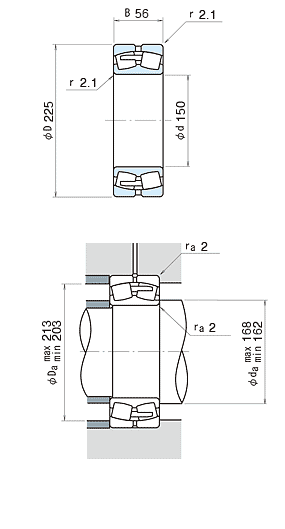

NSK 23030CDE4 Bearing details
model | 23030CDE4 |
---|---|
d | 150 mm |
D | 225 mm |
B | 56.0 mm |
rmin. | 2.1 mm |
Cr |
470000 N 48000 kgf |
C0r |
815000 N 83000 kgf |
Limiting speeds | 1400 min-1 (Grease) |
Limiting speeds | 1800 min-1 (Oil) |
da min | 162 mm |
da max | 168.000 mm |
Da max | 213 mm |
Da min | 203 mm |
ra | 2.0 mm |
Constant | 0.22 |
Y2 | 4.6 Axial Load Factors |
Y3 | 3.1 Axial Load Factors |
Y0 | 3 Axial Load Factors |
Mass | 7.90 kg (approx.) |
NSK 23030CDE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
