NSK 23122CAME4C3 Spherical roller bearings
Also known as : 23122CAME4C3, 23122CC/W33C3
- Inside Diameter: 110 mm
- Outside Diameter: 180 mm
- Width: 56 mm
- Basic dynamic load rating: 385 kN
- Basic static load rating: 630 kN
NSK 23122CAME4C3 Bearing

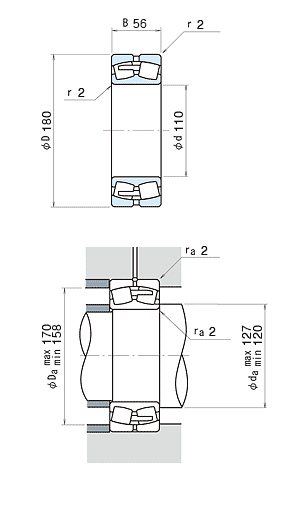

NSK 23122CAME4C3 Bearing details
| model | 23122CAME4C3 |
|---|---|
| d | 110 mm |
| D | 180 mm |
| B | 56.0 mm |
| rmin. | 2.0 mm |
| Cr |
385000 N 39500 kgf |
| C0r |
630000 N 64000 kgf |
| Limiting speeds | 1600 min-1 (Grease) |
| Limiting speeds | 2000 min-1 (Oil) |
| da min | 120 mm |
| da max | 127.000 mm |
| Da max | 170 mm |
| Da min | 158 mm |
| ra | 2.0 mm |
| Constant | 0.28 |
| Y2 | 3.5 Axial Load Factors |
| Y3 | 2.4 Axial Load Factors |
| Y0 | 2.3 Axial Load Factors |
| Mass | 5.70 kg (approx.) |
NSK 23122CAME4C3 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
