NSK 23152CAE4 Spherical roller bearings | 260x440x144.0mm
Also known as : 23152CAE4
- Inside Diameter: 260 mm
- Outside Diameter: 440 mm
- Width: 144 mm
- Basic dynamic load rating: 2160 kN
- Basic static load rating: 3750 kN
NSK 23152CAE4 Bearing
NSK 23152CAE4 Bearing details
| Bearing number | 23152CAE4 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 260 mm |
| D | 440 mm |
| B | 144.0 mm |
| rmin. | 4.0 mm |
| Cr |
2160000 N 221000 kgf |
| C0r |
3750000 N 385000 kgf |
| Limiting speeds | 600 min-1 (Grease) |
| Limiting speeds | 800 min-1 (Oil) |
| da min | 278 mm |
| da max | 0.000 mm |
| Da max | 422 mm |
| Da min | 380 mm |
| ra | 3.0 mm |
| Constant | 0.32 |
| Y2 | 3.2 Axial Load Factors |
| Y3 | 2.1 Axial Load Factors |
| Y0 | 2.1 Axial Load Factors |
| Mass | 88.20 kg (approx.) |
NSK 23152CAE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
NSK 23152CAE4 bearing cross reference

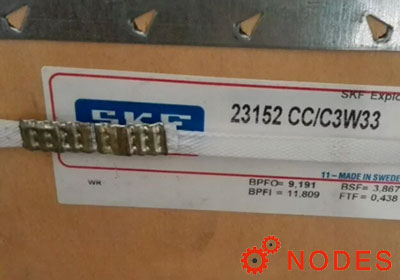

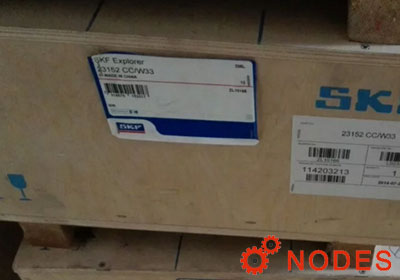

SKF 23152CC/W33 bearing
260mm x 440mm x 144mm
SKF 23152CC/W33 bearing
260mm x 440mm x 144mm
NSK 22252CAE4 bearing
260mm x 480mm x 130.0mm
NSK 22252CAKE4 bearing
260mm x 480mm x 130.0mm
NSK 22352CAE4 bearing
260mm x 540mm x 165.0mm
NSK 22352CAKE4 bearing
260mm x 540mm x 165.0mm
NSK 23052CAKE4 bearing
260mm x 400mm x 104.0mm
NSK 23052CAE4 bearing
260mm x 400mm x 104.0mm
NSK 23152CAKE4 bearing
260mm x 440mm x 144.0mm
NSK 23252CAKE4 bearing
260mm x 480mm x 174.0mm
NSK 23252CAE4 bearing
260mm x 480mm x 174.0mm
