NSK NF type cylindrical roller bearings have two integral flanges on the inner ring and one integral flange on the outer ring.
NSK NF306M roller bearings
NSK NF306M bearing, NF type cylindrical roller bearings, Dimensions: 30mm x 72mm x 19mm, Basic Load Ratings Cr: 41.5kN, C0r: 38.5kN.
- Brand: NSK
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 19 mm
- Basic dynamic load rating: 41.5 kN
- Basic static load rating: 41.5 kN

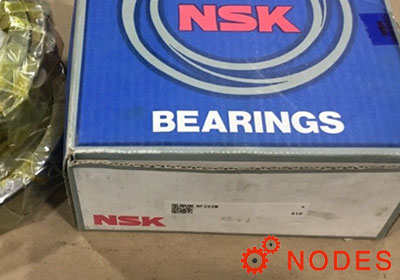

NSK NF222M roller bearings
NSK NF222M bearing, NF type cylindrical roller bearings, Dimensions: 110mm x 200mm x 38mm, Basic Load Ratings Cr: 240kN, C0r: 290kN.
- Brand: NSK
- Inside Diameter: 110 mm
- Outside Diameter: 200 mm
- Width: 38 mm
- Basic dynamic load rating: 240 kN
- Basic static load rating: 240 kN
NSK NF205M roller bearings
NSK NF205M bearing, NF type cylindrical roller bearings, Dimensions: 25mm x 52mm x 15mm, Basic Load Ratings Cr: 18.8kN, C0r: 17kN.
- Brand: NSK
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 18.8 kN
- Basic static load rating: 18.8 kN
NSK NF305M roller bearings
NSK NF305M bearing, NF type cylindrical roller bearings, Dimensions: 25mm x 62mm x 17mm, Basic Load Ratings Cr: 31.5kN, C0r: 27.7kN.
- Brand: NSK
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 17 mm
- Basic dynamic load rating: 31.5 kN
- Basic static load rating: 31.5 kN
NSK NF207M roller bearings
NSK NF207M bearing, NF type cylindrical roller bearings, Dimensions: 35mm x 72mm x 17mm, Basic Load Ratings Cr: 35.5kN, C0r: 34kN.
- Brand: NSK
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 17 mm
- Basic dynamic load rating: 35.5 kN
- Basic static load rating: 35.5 kN
NSK NF307M roller bearings
NSK NF307M bearing, NF type cylindrical roller bearings, Dimensions: 35mm x 80mm x 21mm, Basic Load Ratings Cr: 49.5kN, C0r: 47kN.
- Brand: NSK
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 21 mm
- Basic dynamic load rating: 49.5 kN
- Basic static load rating: 49.5 kN
NSK NF208M roller bearings
NSK NF208M bearing, NF type cylindrical roller bearings, Dimensions: 40mm x 80mm x 18mm, Basic Load Ratings Cr: 46kN, C0r: 46kN.
- Brand: NSK
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 18 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 46 kN
NSK NF1009 roller bearings
NSK NF1009 bearing, NF type cylindrical roller bearings, Dimensions: 45mm x 75mm x 16mm, Basic Load Ratings Cr: 32.5kN, C0r: 35.5kN.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 75 mm
- Width: 16 mm
- Basic dynamic load rating: 32.5 kN
- Basic static load rating: 32.5 kN
NSK NF209M roller bearings
NSK NF209M bearing, NF type cylindrical roller bearings, Dimensions: 45mm x 85mm x 19mm, Basic Load Ratings Cr: 46kN, C0r: 47kN.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 46 kN
NSK NF304W roller bearings
NSK NF304W bearing, NF type cylindrical roller bearings, Dimensions: 20mm x 52mm x 15mm, Basic Load Ratings Cr: 21.4kN, C0r: 17.3kN.
- Brand: NSK
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 21.4 kN
- Basic static load rating: 21.4 kN
NSK NF405W roller bearings
NSK NF405W bearing, NF type cylindrical roller bearings, Dimensions: 25mm x 80mm x 21mm, Basic Load Ratings Cr: 46.5kN, C0r: 40kN.
- Brand: NSK
- Inside Diameter: 25 mm
- Outside Diameter: 80 mm
- Width: 21 mm
- Basic dynamic load rating: 46.5 kN
- Basic static load rating: 46.5 kN
NSK NF407W roller bearings
NSK NF407W bearing, NF type cylindrical roller bearings, Dimensions: 35mm x 100mm x 25mm, Basic Load Ratings Cr: 75.5kN, C0r: 69kN.
- Brand: NSK
- Inside Diameter: 35 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 75.5 kN
- Basic static load rating: 75.5 kN
NSK NF308M roller bearings
NSK NF308M bearing, NF type cylindrical roller bearings, Dimensions: 40mm x 90mm x 23mm, Basic Load Ratings Cr: 58.5kN, C0r: 57kN.
- Brand: NSK
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 23 mm
- Basic dynamic load rating: 58.5 kN
- Basic static load rating: 58.5 kN
NSK NF309M roller bearings
NSK NF309M bearing, NF type cylindrical roller bearings, Dimensions: 45mm x 100mm x 25mm, Basic Load Ratings Cr: 79kN, C0r: 77.5kN.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 79 kN
- Basic static load rating: 79 kN
NSK NF210M roller bearings
NSK NF210M bearing, NF type cylindrical roller bearings, Dimensions: 50mm x 90mm x 20mm, Basic Load Ratings Cr: 50.5kN, C0r: 54.5kN.
- Brand: NSK
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 50.5 kN
- Basic static load rating: 50.5 kN
NSK NF311M roller bearings
NSK NF311M bearing, NF type cylindrical roller bearings, Dimensions: 55mm x 120mm x 29mm, Basic Load Ratings Cr: 111kN, C0r: 111kN.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 29 mm
- Basic dynamic load rating: 111 kN
- Basic static load rating: 111 kN
NSK NF1012 roller bearings
NSK NF1012 bearing, NF type cylindrical roller bearings, Dimensions: 60mm x 95mm x 18mm, Basic Load Ratings Cr: 40kN, C0r: 48.5kN.
- Brand: NSK
- Inside Diameter: 60 mm
- Outside Diameter: 95 mm
- Width: 18 mm
- Basic dynamic load rating: 40 kN
- Basic static load rating: 40 kN
NSK NF408W roller bearings
NSK NF408W bearing, NF type cylindrical roller bearings, Dimensions: 40mm x 110mm x 27mm, Basic Load Ratings Cr: 95.5kN, C0r: 89kN.
- Brand: NSK
- Inside Diameter: 40 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 95.5 kN
- Basic static load rating: 95.5 kN
NSK NF409W roller bearings
NSK NF409W bearing, NF type cylindrical roller bearings, Dimensions: 45mm x 120mm x 29mm, Basic Load Ratings Cr: 107kN, C0r: 102kN.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 120 mm
- Width: 29 mm
- Basic dynamic load rating: 107 kN
- Basic static load rating: 107 kN
NSK NF310M roller bearings
NSK NF310M bearing, NF type cylindrical roller bearings, Dimensions: 50mm x 110mm x 27mm, Basic Load Ratings Cr: 87kN, C0r: 86kN.
- Brand: NSK
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 87 kN
- Basic static load rating: 87 kN
NSK NF411W roller bearings
NSK NF411W bearing, NF type cylindrical roller bearings, Dimensions: 55mm x 140mm x 33mm, Basic Load Ratings Cr: 139kN, C0r: 138kN.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 139 kN
- Basic static load rating: 139 kN
NSK NF212M roller bearings
NSK NF212M bearing, NF type cylindrical roller bearings, Dimensions: 60mm x 110mm x 22mm, Basic Load Ratings Cr: 72kN, C0r: 80kN.
- Brand: NSK
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 22 mm
- Basic dynamic load rating: 72 kN
- Basic static load rating: 72 kN
NSK NF214M roller bearings
NSK NF214M bearing, NF type cylindrical roller bearings, Dimensions: 70mm x 125mm x 24mm, Basic Load Ratings Cr: 83.5kN, C0r: 95kN.
- Brand: NSK
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 24 mm
- Basic dynamic load rating: 83.5 kN
- Basic static load rating: 83.5 kN
NSK NF215M roller bearings
NSK NF215M bearing, NF type cylindrical roller bearings, Dimensions: 75mm x 130mm x 25mm, Basic Load Ratings Cr: 101kN, C0r: 118kN.
- Brand: NSK
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 25 mm
- Basic dynamic load rating: 101 kN
- Basic static load rating: 101 kN
NSK NF316M roller bearings
NSK NF316M bearing, NF type cylindrical roller bearings, Dimensions: 80mm x 170mm x 39mm, Basic Load Ratings Cr: 201kN, C0r: 223kN.
- Brand: NSK
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 39 mm
- Basic dynamic load rating: 201 kN
- Basic static load rating: 201 kN
NSK NF217M roller bearings
NSK NF217M bearing, NF type cylindrical roller bearings, Dimensions: 85mm x 150mm x 28mm, Basic Load Ratings Cr: 120kN, C0r: 140kN.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 28 mm
- Basic dynamic load rating: 120 kN
- Basic static load rating: 120 kN
NSK NF414M roller bearings
NSK NF414M bearing, NF type cylindrical roller bearings, Dimensions: 70mm x 180mm x 42mm, Basic Load Ratings Cr: 243kN, C0r: 257kN.
- Brand: NSK
- Inside Diameter: 70 mm
- Outside Diameter: 180 mm
- Width: 42 mm
- Basic dynamic load rating: 243 kN
- Basic static load rating: 243 kN
NSK NF315M roller bearings
NSK NF315M bearing, NF type cylindrical roller bearings, Dimensions: 75mm x 160mm x 37mm, Basic Load Ratings Cr: 190kN, C0r: 205kN.
- Brand: NSK
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 37 mm
- Basic dynamic load rating: 190 kN
- Basic static load rating: 190 kN
NSK NF416M roller bearings
NSK NF416M bearing, NF type cylindrical roller bearings, Dimensions: 80mm x 200mm x 48mm, Basic Load Ratings Cr: 299kN, C0r: 315kN.
- Brand: NSK
- Inside Diameter: 80 mm
- Outside Diameter: 200 mm
- Width: 48 mm
- Basic dynamic load rating: 299 kN
- Basic static load rating: 299 kN
NSK NF317M roller bearings
NSK NF317M bearing, NF type cylindrical roller bearings, Dimensions: 85mm x 180mm x 41mm, Basic Load Ratings Cr: 225kN, C0r: 247kN.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 41 mm
- Basic dynamic load rating: 225 kN
- Basic static load rating: 225 kN
NSK NF318M roller bearings
NSK NF318M bearing, NF type cylindrical roller bearings, Dimensions: 90mm x 190mm x 43mm, Basic Load Ratings Cr: 240kN, C0r: 265kN.
- Brand: NSK
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 43 mm
- Basic dynamic load rating: 240 kN
- Basic static load rating: 240 kN
NSK NF312M roller bearings
NSK NF312M bearing, NF type cylindrical roller bearings, Dimensions: 60mm x 130mm x 31mm, Basic Load Ratings Cr: 124kN, C0r: 126kN.
- Brand: NSK
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 124 kN
- Basic static load rating: 124 kN
NSK NF213M roller bearings
NSK NF213M bearing, NF type cylindrical roller bearings, Dimensions: 65mm x 120mm x 23mm, Basic Load Ratings Cr: 84kN, C0r: 94.5kN.
- Brand: NSK
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 23 mm
- Basic dynamic load rating: 84 kN
- Basic static load rating: 84 kN
NSK NF412M roller bearings
NSK NF412M bearing, NF type cylindrical roller bearings, Dimensions: 60mm x 150mm x 35mm, Basic Load Ratings Cr: 167kN, C0r: 168kN.
- Brand: NSK
- Inside Diameter: 60 mm
- Outside Diameter: 150 mm
- Width: 35 mm
- Basic dynamic load rating: 167 kN
- Basic static load rating: 167 kN
NSK NF313M roller bearings
NSK NF313M bearing, NF type cylindrical roller bearings, Dimensions: 65mm x 140mm x 33mm, Basic Load Ratings Cr: 143kN, C0r: 151kN.
- Brand: NSK
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 143 kN
- Basic static load rating: 143 kN
NSK NF314M roller bearings
NSK NF314M bearing, NF type cylindrical roller bearings, Dimensions: 70mm x 150mm x 35mm, Basic Load Ratings Cr: 158kN, C0r: 168kN.
- Brand: NSK
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 35 mm
- Basic dynamic load rating: 158 kN
- Basic static load rating: 158 kN
NSK NF1015 roller bearings
NSK NF1015 bearing, NF type cylindrical roller bearings, Dimensions: 75mm x 115mm x 20mm, Basic Load Ratings Cr: 60kN, C0r: 74.5kN.
- Brand: NSK
- Inside Diameter: 75 mm
- Outside Diameter: 115 mm
- Width: 20 mm
- Basic dynamic load rating: 60 kN
- Basic static load rating: 60 kN
NSK NF418M roller bearings
NSK NF418M bearing, NF type cylindrical roller bearings, Dimensions: 90mm x 225mm x 54mm, Basic Load Ratings Cr: 375kN, C0r: 400kN.
- Brand: NSK
- Inside Diameter: 90 mm
- Outside Diameter: 225 mm
- Width: 54 mm
- Basic dynamic load rating: 375 kN
- Basic static load rating: 375 kN
