NSK HR30216J Tapered Roller Bearings
Also known as : HR30216J, 30216
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 28.25 mm
- Basic dynamic load rating: 157 kN
- Basic static load rating: 195 kN
NSK HR30216J Bearing

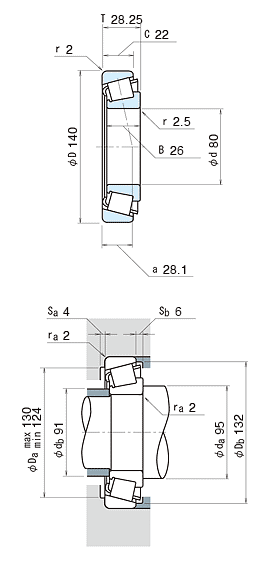

NSK HR30216J Bearing details
| model | HR30216J |
|---|---|
| d | 80 mm |
| D | 140 mm |
| T | 28.25 mm |
| B | 26 mm |
| C | 22 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr | 157000 N |
| C0r | 195000 N |
| Limiting speeds | 2600 min-1 (Grease) |
| Limiting speeds | 3400 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EB |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 1.68 kg (approx.) |
NSK HR30216J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR30216J bearing cross reference
NSK HR30316J bearing
80mm x 170mm x 42.5mm
NSK HR32216J bearing
80mm x 140mm x 35.25mm
NSK HR32316J bearing
80mm x 170mm x 61.5mm
FAG 30216-A bearing
80mm x 140mm x 28.25mm
FAG 30216-XL bearing
80mm x 140mm x 28.25mm
NTN 30216U bearing
80mm x 140mm x 26.0mm
NSK HR32916J bearing
80mm x 110mm x 20mm
NSK HR32016XJ bearing
80mm x 125mm x 29mm
NSK HR33016J bearing
80mm x 125mm x 36mm
NSK HR33116J bearing
80mm x 130mm x 37mm
NSK HR33216J bearing
80mm x 140mm x 46mm
