NSK HR32215J Tapered roller bearings
Also known as : HR32215J, 32215
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 33.25 mm
- Basic dynamic load rating: 165 kN
- Basic static load rating: 219 kN
NSK HR32215J Bearing

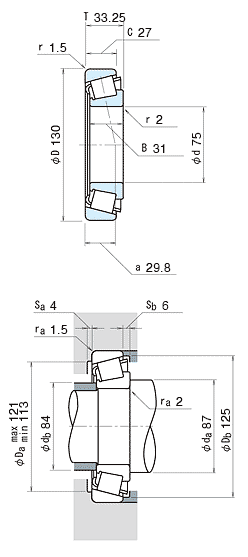

NSK HR32215J Bearing details
| model | HR32215J |
|---|---|
| d | 75 mm |
| D | 130 mm |
| T | 33.25 mm |
| B | 31 mm |
| C | 27 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
165000 N 16900 kgf |
| C0r |
219000 N 22400 kgf |
| Limiting speeds |
2800 min-1 (Grease) |
| Limiting speeds |
3800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
4DC |
| e | 0.44 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.76 (Axial Load Factors) |
| Mass | 1.72 kg (approx.) |
NSK HR32215J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32215J bearing cross reference
NSK HR30215J bearing
75mm x 130mm x 27.25mm
FAG 32215-A bearing
75mm x 130mm x 33.25mm
FAG 32215-XL bearing
75mm x 130mm x 33.25mm
NTN 32215U bearing
75mm x 130mm x 31.0mm
NSK HR32915J bearing
75mm x 105mm x 20mm
NSK HR32015XJ bearing
75mm x 115mm x 25mm
NSK HR33015J bearing
75mm x 115mm x 31mm
NSK HR33115J bearing
75mm x 125mm x 37mm
NSK HR33215J bearing
75mm x 130mm x 41mm
NSK HR30315DJ bearing
75mm x 160mm x 40mm
NSK HR30315J bearing
75mm x 160mm x 40mm
