NSK HR33205J Tapered roller bearings
Also known as : HR33205J, 33205
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 22 mm
- Basic dynamic load rating: 47.5 kN
- Basic static load rating: 56.5 kN
NSK HR33205J Bearing

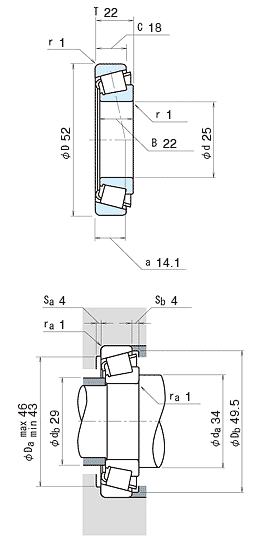

NSK HR33205J Bearing details
| model | HR33205J |
|---|---|
| d | 25 mm |
| D | 52 mm |
| T | 22 mm |
| B | 22 mm |
| C | 18 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr |
47500 N 4850 kgf |
| C0r |
56500 N 5750 kgf |
| Limiting speeds |
7500 min-1 (Grease) |
| Limiting speeds |
10000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2DE |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.94 (Axial Load Factors) |
| Mass | 0.221 kg (approx.) |
NSK HR33205J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR33205J bearing cross reference
FAG 33205 bearing
25mm x 52mm x 22mm
SKF 33205 bearing
25mm x 52mm x 22mm
NTN 4T-33205 bearing
25mm x 52mm x 22.0mm
NSK HR32005XJ bearing
25mm x 47mm x 15mm
NSK HR33005J bearing
25mm x 47mm x 17mm
NSK HR30205C bearing
25mm x 52mm x 16.25mm
NSK HR30205J bearing
25mm x 52mm x 16.25mm
NSK HR32205C bearing
25mm x 52mm x 19.25mm
NSK HR32205J bearing
25mm x 52mm x 19.25mm
NSK HR30305C bearing
25mm x 62mm x 18.25mm
NSK HR30305DJ bearing
25mm x 62mm x 18.25mm
