NSK N1036 roller bearings
Also known as : N1036, N1036
- Inside Diameter: 180 mm
- Outside Diameter: 280 mm
- Width: 46 mm
- Basic dynamic load rating: 355 kN
- Basic static load rating: 510 kN
NSK N1036 Bearing

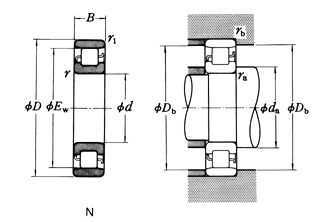

NSK N1036 Bearing details
NSK No. | N1036 |
---|---|
d | 180 mm |
D | 280 mm |
B | 46 mm |
rmin. | 2.1 mm |
r1 min. | 2.1 mm |
Ew | 255 mm |
Cr | 355 kN, Basic dynamic Load Ratings |
C0r | 510 kN, Basic static Load Ratings |
Limiting speeds Thermal Reference |
3000 min-1 |
Limiting speeds Grease |
2200 min-1 |
Limiting speeds Oil |
2600 min-1 |
Mass | 10.1 kg (approx.) |
NSK N1036 roller bearings, N type, cylindrical roller bearings, single-Row.
