NSK NU213EW Bearing

NSK NU213EW Cylindrical roller bearings

Also known as : NU213EW, NU213ECJ

  • Inside Diameter: 65 mm
  • Outside Diameter: 120 mm
  • Width: 23 mm
  • Basic dynamic load rating: 108 kN
  • Basic static load rating: 119 kN

Inquire Now


NSK NU213EW Bearing

NSK NU213EW Bearing details

model NU213EW
d 65 mm
D 120 mm
B 23 mm
rmin. 1.5 mm
r1 min. 1.5 mm
Fw 78.5 mm
Cr 108000 N
11000 kgf
C0r 119000 N
12100 kgf
Limiting speeds 4800 min-1 (Grease)
Limiting speeds 5600 min-1 (Oil)
db min 73 mm
db max 76 mm
Da 112.0 mm
ra 1.5 mm
rb 1.5 mm
Mass 1.050 kg (approx.)

NSK NU213EW roller bearings, NU type, cylindrical roller bearings, single-Row.

NSK NU213EW bearing cross reference

NSK NU1013 bearing
65mm x 100mm x 18mm
NSK NU2213 bearing
65mm x 120mm x 31mm
NSK NU2213ET bearing
65mm x 120mm x 31mm
NSK NU313 bearing
65mm x 140mm x 33mm
NSK NU313EM bearing
65mm x 140mm x 33mm
NSK NU2313 bearing
65mm x 140mm x 48mm

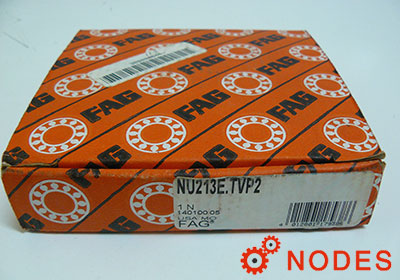

FAG NU213-E-XL-TVP2 bearing
65mm x 120mm x 23mm

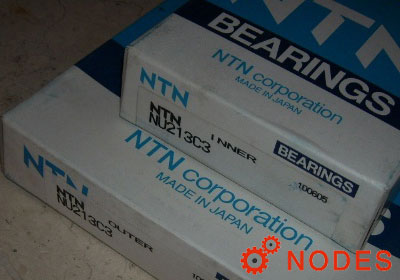

NTN NU213 bearing
65mm x 120mm x 23mm
NSK N213M bearing
65mm x 120mm x 23mm
NSK N313M bearing
65mm x 140mm x 33mm
NSK N1013 bearing
65mm x 100mm x 18mm
NSK N413M bearing
65mm x 160mm x 37mm
