NTN 6301LLBC3 bearings | 12x37x12mm
Also known as : 6301LLBC3
- Inside Diameter: 12 mm
- Outside Diameter: 37 mm
- Width: 12 mm
- Basic dynamic load rating: 9.7 kN
- Basic static load rating: 4.2 kN
NTN 6301LLBC3 Bearing
NTN 6301LLBC3 Bearing details
| Part Number | 6301LLBC3 |
|---|---|
| Brand | NTN |
| Mass | 0.06 kg |

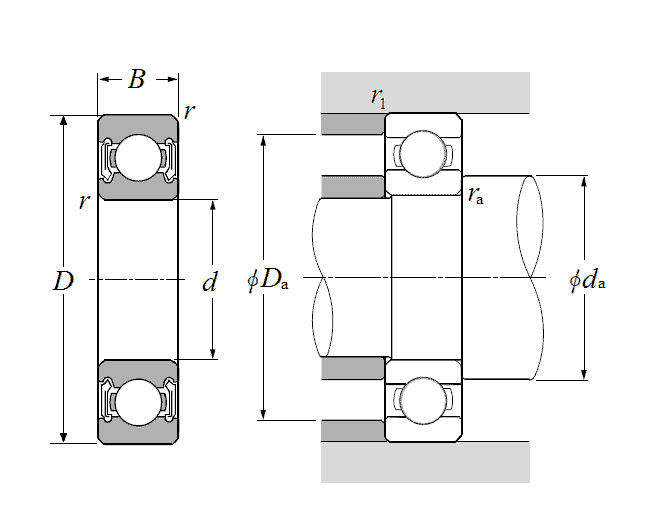

| Boundary dimensions (mm) | |
| Inner dia. (d) | 12 |
| Outer dia. (D) | 37 |
| Width (B) | 12 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 9.7 |
| Static (Cor) | 4.2 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 990 |
| Static (Cor) | 425 |
| Limiting speed (min-1) | |
| Grease | 20000 |
| Oil | 24000 |
| Abutment and fillet dimensions (mm) | |
| da min | 17 |
| da max | 18.5 |
| Da max | 32 |
| ras max | 1 |
Nodes have NTN 6301LLBC3 bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 6301LLBC3 bearing cross reference
NSK 6301 bearing
12mm x 37mm x 12mm
NSK 6301ZZ bearing
12mm x 37mm x 12mm
NSK 6301DDU bearing
12mm x 37mm x 12mm
NSK 6301VV bearing
12mm x 37mm x 12mm
SKF 6301 bearing
12mm x 37mm x 12mm
FAG 6301 bearing
12mm x 37mm x 12mm
FAG 6301-2RSR bearing
12mm x 37mm x 12mm
TIMKEN 6301-2RS bearing
12mm x 37mm x 12mm
TIMKEN 6301-2RS-NR bearing
12mm x 37mm x 12mm
TIMKEN 6301-N bearing
12mm x 37mm x 12mm
TIMKEN 6301-2RZ bearing
12mm x 37mm x 12mm
