NTN 6916LLU bearings | 80x110x16mm
Also known as : 6916LLU
- Inside Diameter: 80 mm
- Outside Diameter: 110 mm
- Width: 16 mm
- Basic dynamic load rating: 24.9 kN
- Basic static load rating: 24 kN
NTN 6916LLU Bearing
NTN 6916LLU Bearing details
| Part Number | 6916LLU |
|---|---|
| Brand | NTN |
| Mass | 0.373 kg |
| Boundary dimensions (mm) | |
| Inner dia. (d) | 80 |
| Outer dia. (D) | 110 |
| Width (B) | 16 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 24.9 |
| Static (Cor) | 24 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 2540 |
| Static (Cor) | 2450 |
| Limiting speed (min-1) | |
| Grease | 3200 |
| Abutment and fillet dimensions (mm) | |
| da min | 85 |
| da max | 88 |
| Da max | 105 |
| ras max | 1 |
Nodes have NTN 6916LLU bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 6916LLU bearing cross reference

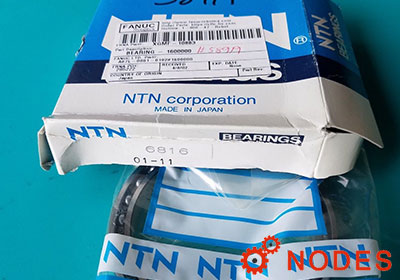

NTN 6816 bearing
80mm x 100mm x 10mm
NTN 6916 bearing
80mm x 110mm x 16mm
NTN 16016 bearing
80mm x 125mm x 14mm
NTN 6016 bearing
80mm x 125mm x 22mm
NTN 6216C3 bearing
80mm x 140mm x 26mm
NTN 6316 bearing
80mm x 170mm x 39mm
NTN 6416 bearing
80mm x 200mm x 48mm
NTN 6816ZZ bearing
80mm x 100mm x 10mm
NTN 6916ZZ bearing
80mm x 110mm x 16mm
NTN 6016ZZ bearing
80mm x 125mm x 22mm
NTN 6216ZZ bearing
80mm x 140mm x 26mm
