NTN AC-6000LLB bearings | 10x26x8mm
Also known as : AC-6000LLB
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 8 mm
- Basic dynamic load rating: 4.55 kN
- Basic static load rating: 1.96 kN
NTN AC-6000LLB Bearing
NTN AC-6000LLB Bearing details
| Part Number | AC-6000LLB |
|---|---|
| Brand | NTN |
| Mass | 0.019 kg |
| Boundary dimensions (mm) | |
| Inner dia. (d) | 10 |
| Outer dia. (D) | 26 |
| Width (B) | 8 |
| Chamfer (rs_min) | 0.3 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 4.55 |
| Static (Cor) | 1.96 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 465 |
| Static (Cor) | 200 |
| Limiting speed (min-1) | |
| Grease | 29000 |

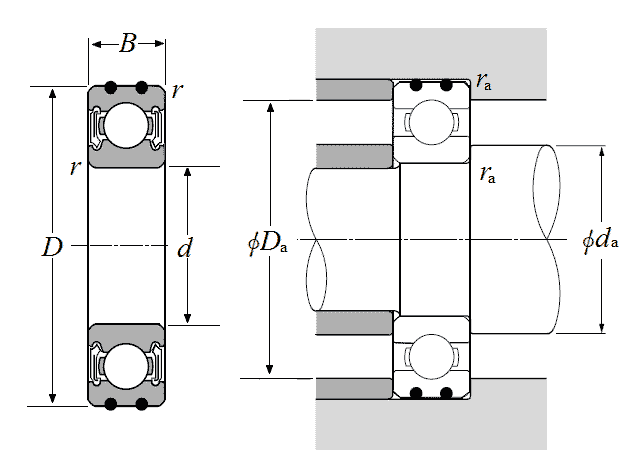

| Abutment and fillet dimensions (mm) | |
| da min | 12 |
| da max | 13.5 |
| Da max | 24 |
| ras max | 0.3 |
Nodes have NTN AC-6000LLB bearings in stock. AC bearings, have the same boundary dimensions as standard bearings with the addition of two O-rings imbedded on the outside surface of the outer ring.
NTN AC-6000LLB bearing cross reference
NSK 6000ZZ bearing
10mm x 26mm x 8mm
FAG 6000-2RSR bearing
10mm x 26mm x 8mm
SKF 6000-2Z/C3 bearing
10mm x 26mm x 8mm
SKF 6000-2RSH bearing
10mm x 26mm x 8mm
NSK 6000 bearing
10mm x 26mm x 8mm
NSK 6000DDU bearing
10mm x 26mm x 8mm
NSK 6000VV bearing
10mm x 26mm x 8mm
FAG 6000 bearing
10mm x 26mm x 8mm
FAG 6000-2RSR bearing
10mm x 26mm x 8mm
TIMKEN 6000-2RS bearing
10mm x 26mm x 8mm
TIMKEN 6000-2RS-NR bearing
10mm x 26mm x 8mm
