NTN 3206S Double row angular contact ball bearings
Also known as : 3206, 5206
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 23.8 mm
- Basic dynamic load rating: 29.6 kN
- Basic static load rating: 21.1 kN
NTN 3206S Bearing
NTN 3206S Bearing details
| Part Number | 3206S |
|---|---|
| Brand | NTN |
| Catagory | Double Row Angular Contact Ball Bearings |
| d | 30 mm |
| D | 62 mm |
| B | 23.8 mm |
| rs min | 1 mm |
| Cr | 29.6 kN, Basic load ratings, dynamic |
| C0r | 21.1 kN, Basic load ratings, static |
| Limiting speeds | 7100 min-1, grease |
| 9500 min-1, oil | |
| Load center | 31.6 mm |
| Mass | 0.29 kg |
NTN 3206S double row angular contact ball bearings is designed by arranging two single row angular contact bearings back-to-back in duplex to form one united bearing with a contact angle of 25°.
NTN 3206S bearing cross reference
SKF 3206 A bearing
30mm x 62mm x 23.8mm

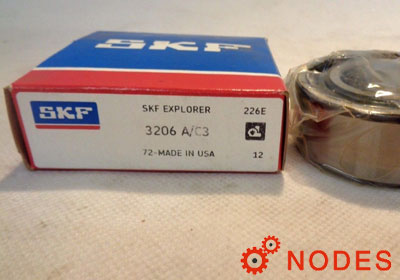

SKF 3206 A/C3 bearing
30mm x 62mm x 23.8mm

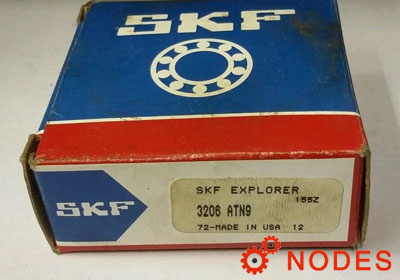

SKF 3206 ATN9 bearing
30mm x 62mm x 23.8mm

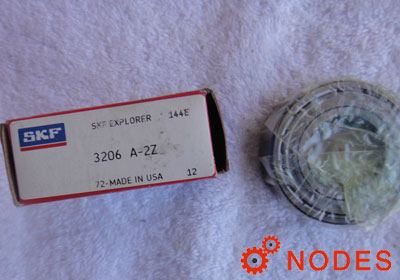

SKF 3206 A-2Z bearing
30mm x 62mm x 23.8mm

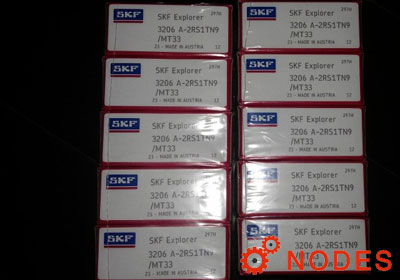

SKF 3206 A-2RS1TN9/MT33 bearing
30mm x 62mm x 23.8mm

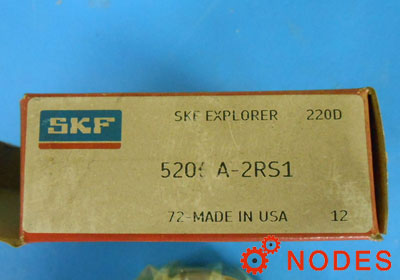

SKF 3206 A-2RS1 bearing
30mm x 62mm x 23.8mm
INA 3206-2Z bearing
30mm x 62mm x 23.8mm

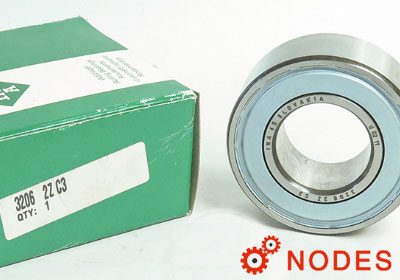

INA 3206-2Z-C3 bearing
30mm x 62mm x 23.8mm

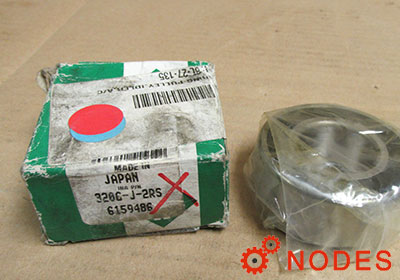

INA 3206-2RS bearing
30mm x 62mm x 23.8mm
FAG 3206-BD-XL bearing
30mm x 62mm x 23.8mm
FAG 3206-BD-XL-TVH bearing
30mm x 62mm x 23.8mm
