NTN 7318B bearings | 90x190x43mm
Also known as : 7318B
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 43 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 135 kN
NTN 7318B Bearing
NTN 7318B Bearing details
| Part Number | 7318B |
|---|---|
| Brand | NTN |
| Mass | 5.16 kg |
| Boundary dimensions (mm) | |
| Inner dia. (d) | 90 |
| Outer dia. (D) | 190 |
| Width (B) | 43 |
| Chamfer (rs_min) | 3 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 156 |
| Static (Cor) | 135 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 15900 |
| Static (Cor) | 13800 |
| Limiting speed (min-1) | |
| Grease | 3400 |
| Oil | 4500 |
| Abutment and fillet dimensions (mm) | |
| da min | 104 |
| Da max | 176 |
| ras max | 2.5 |
Nodes have NTN 7318B bearings in stock. 7318B, single row angular contact ball bearing.
NTN 7318B bearing cross reference
FAG 7318-B-JP bearing
90mm x 190mm x 43mm
FAG 7318-B-MP-UA bearing
90mm x 190mm x 43mm
FAG 7318-B-XL-TVP bearing
90mm x 190mm x 43mm

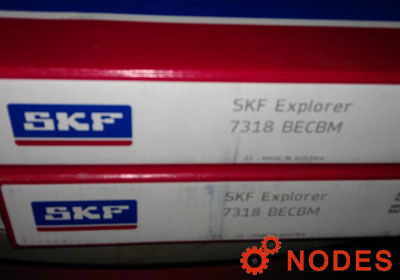

SKF 7318 BECBM bearing
90mm x 190mm x 43mm
NSK 7318B bearing
90mm x 190mm x 43mm
NSK 7318A bearing
90mm x 190mm x 43mm
NSK 7318ADB bearing
90mm x 190mm x 43mm
NSK 7318BDB bearing
90mm x 190mm x 43mm
NSK 7318ADF bearing
90mm x 190mm x 43mm
NSK 7318BDF bearing
90mm x 190mm x 43mm
NSK 7318ADT bearing
90mm x 190mm x 43mm
