SKF 3205 A-2Z/C3 Bearing

SKF 3205 A-2Z/C3 ball bearings

Also known as : 3205 A-2Z/C3, 5205A-2Z/C3

• Inside Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 20.6 mm
• Basic dynamic load rating: 21.6 kN
• Basic static load rating: 14.3 kN

Inquire Now

SKF 3205 A-2Z/C3 Bearing

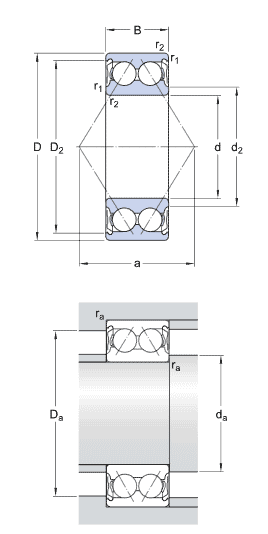

model	3205 A-2Z/C3
d	25 mm
D	52 mm
B	20.6 mm
d2	32.7 mm
D2	45.9 mm
a	30 mm
r1,2 min.	1 mm
da min	30.6 mm
Da max	32.5 mm
ra max	1 mm
C	21.6 kN, Basic dynamic load rating
C0	14.3 kN, Basic static load rating
Pu	0.6 kN, Fatigue load limit
Reference speed	12000 r/min
Limiting speed	12000 r/min
kr	0.06, Calculation factor
e	0.8, Calculation factor
X	0.63, Calculation factor
Y0	0.66, Calculation factor
Y1	0.78, Calculation factor
Y2	1.24, Calculation factor
Mass	0.18 kg

SKF 3205 A-2Z/C3 ball bearings, Angular contact ball bearings, double row, Shield on both sides.
