SKF 6206-2Z deep groove ball bearing
Also known as : 6206-2Z, 6206ZZ
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 20.3 kN
- Basic static load rating: 11.2 kN
SKF 6206-2Z Bearing

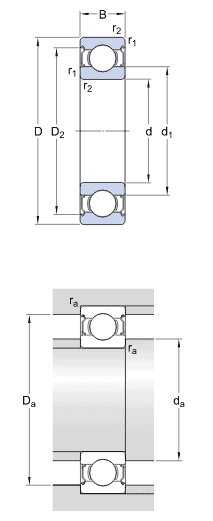

SKF 6206-2Z Bearing details
model | 6206-2Z |
---|---|
d | 30 mm |
D | 62 mm |
B | 16 mm |
d1 | 40.36 mm |
D2 | 54.06 mm |
r1,2 min. | 1 mm |
da min. | 35.6 mm |
da max. | 40.3 mm |
Da max. | 56.4 mm |
ra max. | 1 mm |
Cr | 20.3 kN Basic dynamic load rating |
C0r | 11.2 kN Basic static load rating |
Reference speed | 24000 r/min |
Limiting speed | 12000 r/min |
Mass | 0.207 kg |
6206-2Z SKF deep groove bearing, single row, Deep groove ball bearings, 2Z: Shield on both sides.
