SKF QJ210MA ball bearings
Also known as : QJ210MA, QJ210-XL-MPA
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 65.5 kN
- Basic static load rating: 61 kN
SKF QJ210MA Bearing
SKF QJ210MA Bearing details
| model | QJ210MA |
|---|---|
| d | 50 mm |
| D | 90 mm |
| B | 20 mm |
| d1 | 59.5 mm |
| D1 | 76.5 mm |
| a | 49 mm |
| r1,2 min. | 1.1 mm |
| da min | 57 mm |
| Da max | 83 mm |
| ra max | 1 mm |
| C | 65.5 kN, Basic dynamic load rating |
| C0 | 61 kN, Basic static load rating |
| Pu | 2.6 kN, Fatigue load limit |
| Limiting speed | 13000 r/min |
| A | 10.281, Calculation factor |
| e | 0.95, Calculation factor |
| X | 0.6, Calculation factor |
| Y0 | 0.58, Calculation factor |
| Y1 | 0.66, Calculation factor |
| Y2 | 1.07, Calculation factor |
| Mass | 0.59 kg |
As SKF bearing distributor, Nodes bearings have SKF QJ210MA ball bearings in stock, SKF four-point contact ball bearings.
SKF QJ210MA bearing cross reference

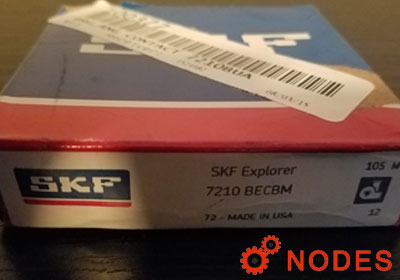

SKF 7210 BECBM bearing
50mm x 90mm x 20mm

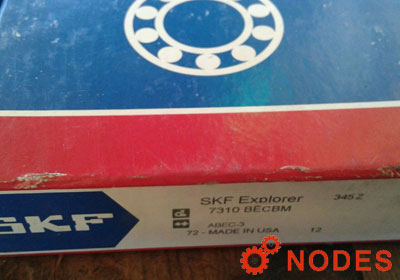

SKF 7310 BECBM bearing
50mm x 110mm x 27mm
SKF 3210 ATN9 bearing
50mm x 90mm x 30.2mm
SKF 3310 A bearing
50mm x 110mm x 44.4mm
SKF 3210 A bearing
50mm x 90mm x 30.2mm
NSK QJ210 bearing
50mm x 90mm x 20mm
FAG QJ210-XL-MPA bearing
50mm x 90mm x 20mm
SKF 7310 BEP bearing
50.0x110.0x27.0mm
