SKF INSOCOAT bearings are designed to prevent electric current from passing through the bearing. The external surfaces of either their inner or outer ring are coated with an insulating aluminium oxide layer, by applying a sophisticated plasma-spray process for an outstanding quality finish.
Nodes supplies SKF INSOCOAT bearings, including deep groove ball bearings, and cylindrical roller bearings.
6226/C3VL0241 SKF INSOCOAT bearings
6226/C3VL0241, SKF, INSOCOAT single row deep groove ball bearings, Bore diameter 130mm, Outside diameter 230mm, Width 40mm, 6226/C3VL0241, In Stock.
- Brand: SKF
- Inside Diameter: 130 mm
- Outside Diameter: 230 mm
- Width: 40 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 156 kN
6220/C3VL0241 SKF INSOCOAT ball bearings
6220/C3VL0241, SKF INSOCOAT ball bearings, Insulation coating on outer ring, Bore diameter 100mm, Outside diameter 180mm, Width 34mm, 6220/C3VL0241 In Stock.
- Brand: SKF
- Inside Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 34 mm
- Basic dynamic load rating: 127 kN
- Basic static load rating: 127 kN
6218/C3VL0241 SKF INSOCOAT ball bearings
6218/C3VL0241 SKF INSOCOAT ball bearings, Insulation coating on outer ring, Bore diameter 90mm, Outside diameter 160mm, Width 30mm, 6218/C3VL0241 bearing In stock.
- Brand: SKF
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 30 mm
- Basic dynamic load rating: 101 kN
- Basic static load rating: 101 kN
6316/C3VL0241 SKF INSOCOAT ball bearings
6316/C3VL0241 SKF INSOCOAT ball bearings, Insulation coating on outer ring, Bore diameter 80mm, Outside diameter 170mm, Width 39mm, 6316/C3VL0241 In Stock.
- Brand: SKF
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 39 mm
- Basic dynamic load rating: 130 kN
- Basic static load rating: 130 kN
6317/C3VL0241 SKF INSOCOAT bearings
6317/C3VL0241, SKF INSOCOAT bearings, Insulation coating on outer ring, Bore diameter 85mm, Outside diameter 180mm, Width 41mm, 6317/C3VL0241 In Stock.
- Brand: SKF
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 41 mm
- Basic dynamic load rating: 140 kN
- Basic static load rating: 140 kN
SKF 6326M/C3VL0241 INSOCOAT ball bearings
6326 M/C3VL0241, SKF, INSOCOAT deep groove ball bearings, Insulation coating on outer ring, Bore diameter 130mm, Outside diameter 280mm, Width 58mm, In Stock.
- Brand: SKF
- Inside Diameter: 130 mm
- Outside Diameter: 280 mm
- Width: 58 mm
- Basic dynamic load rating: 229 kN
- Basic static load rating: 229 kN

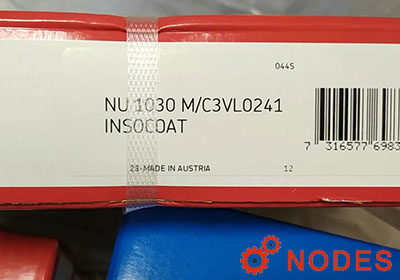

SKF NU1030M/C3VL0241 INSOCOAT cylindrical roller bearing
SKF NU1030M/C3VL0241 INSOCOAT single row cylindrical roller bearing, NU design, C3 radial internal clearance, Insulation coating on outer ring
- Brand: SKF
- Inside Diameter: 150 mm
- Outside Diameter: 225 mm
- Width: 35 mm
- Basic dynamic load rating: 194 kN
- Basic static load rating: 194 kN

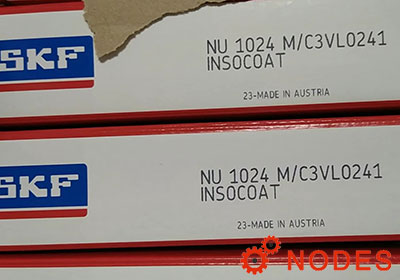

SKF NU1024M/C3VL0241 INSOCOAT cylindrical roller bearing
SKF NU1024M/C3VL0241 INSOCOAT single row cylindrical roller bearing, NU design, C3 radial internal clearance, Insulation coating on outer ring
- Brand: SKF
- Inside Diameter: 120 mm
- Outside Diameter: 180 mm
- Width: 28 mm
- Basic dynamic load rating: 134 kN
- Basic static load rating: 134 kN
