SKF GE4E spherical plain bearings | 4x12x5mm
Also known as : GE4E
- Inside Diameter: 4 mm
- Outside Diameter: 12 mm
- Width: 5 mm
- Basic dynamic load rating: 2.04 kN
- Basic static load rating: 10.2 kN
SKF GE4E Bearing

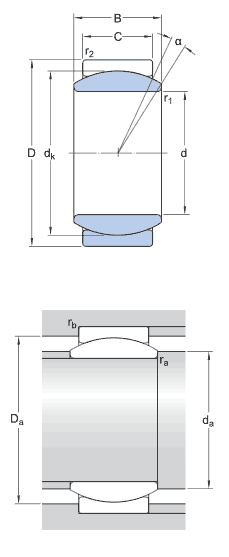

SKF GE4E Bearing details
| number | GE4E |
|---|---|
| Type | Radial spherical plain bearings |
| d | 4 mm |
| D | 12 mm |
| B | 5 mm |
| C | 3 mm |
| α | 16° |
| dk | 8 mm |
| r1 min. | 0.3 mm |
| r2 min. | 0.3 mm |
| da min. | 5.5 mm |
| da max. | 6.2 mm |
| Da min. | 7.6 mm |
| Da max. | 10.7 mm |
| ra max. | 0.3 mm |
| rb max. | 0.3 mm |
| Calculation data | |
| Basic dynamic load rating C | 2.04 kN |
| Basic static load rating C0 | 10.2 kN |
| Specific dynamic load factor K | 100 N/mm² |
| Specific static load factor K0 | 500 N/mm² |
| Material constant KM | 330 |
| Mass | 0.003 kg |
As SKF bearing distributor, Nodes bearings have SKF GE4E spherical plain bearings in stock.
A characteristic feature of SKF steel/steel radial spherical plain bearings is the outer ring, which is intentionally fractured so that it can be sprung apart to enable the inner ring to be inserted
