SKF PCM606540E bushings | 60mm x 65mm x 40mm
Also known as : PCM606540E
- Inside Diameter: 60 mm
- Outside Diameter: 65 mm
- Width: 40 mm
- Basic dynamic load rating: 190 kN
- Basic static load rating: 585 kN
SKF PCM606540E Bearing

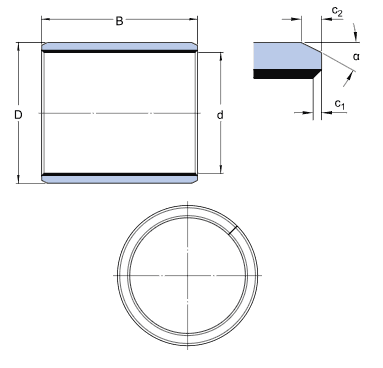

SKF PCM606540E Bearing details
| number | PCM606540E |
|---|---|
| Brand | SKF |
| Type | Bushings |
| d | 60 mm |
| D | 65 mm |
| B | 40 mm |
| c1 min. | 0.2 mm |
| c1 max. | 1 mm |
| c2 min. | 1.2 mm |
| c2 max. | 2.4 mm |
| α ±8 | 20 ° |
| Calculation data | |
| Basic dynamic load rating - radial direction C | 190 kN |
| Basic static load rating - radial direction C0 | 585 kN |
| Specific dynamic load factor K | 80 N/mm² |
| Specific static load factor K0 | 250 N/mm² |
| Factor depending on material and bearing type KM | 480 |
| Permissible sliding velocity v min. | 0 m/s |
| Permissible sliding velocity v max. | 2 m/s |
| Coefficient of friction µ min. | 0.03 |
| Coefficient of friction µ max. | 0.25 |
| Mass | 0.15 kg |
As SKF bearing distributor, Nodes bearings have SKF PCM606540E bush bearings in stock.
