SKF 22222EK Bearing

SKF 22222EK spherical roller bearings

Also known as : 22222EK, 22222-E1-K

• Inside Diameter: 110 mm
• Outside Diameter: 200 mm
• Width: 53 mm
• Basic dynamic load rating: 572 kN
• Basic static load rating: 640 kN

Inquire Now

SKF 22222EK Bearing

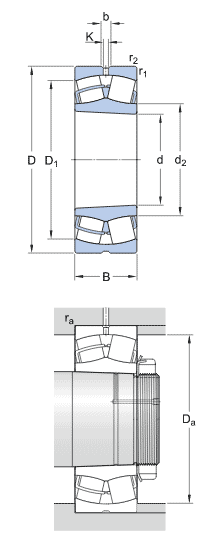

model	22222EK
d	110 mm
D	200 mm
B	53 mm
d2	130 mm
D1	178 mm
b	8.3 mm
K	4.5 mm
r1,2 min.	2.1 mm
Tapered bore, taper 1:12
Da max	188 mm
ra max	2 mm
C	572 kN, Basic dynamic load rating
C0	640 kN, Basic static load rating
Pu	63 kN, Fatigue load limit
Reference speed	3000 r/min
Limiting speed	4000 r/min
e	0.25, Calculation factor
Y1	2.7, Calculation factor
Y2	4, Calculation factor
Y0	2.5, Calculation factor
α	°, Recommended lock nut tightening angle
Mass	6.85 kg

SKF 22222EK roller bearings, SKF Explorer, Tapered bore, taper 1:12, Spherical roller bearings.
