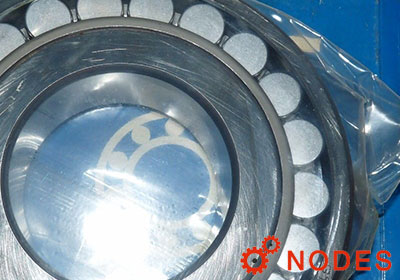

SKF 22314E/C3 Bearing

SKF 22314E/C3 spherical roller bearings

Also known as : 22314E/C3, 22314-E1-C3

  • Inside Diameter: 70 mm
  • Outside Diameter: 150 mm
  • Width: 51 mm
  • Basic dynamic load rating: 413 kN
  • Basic static load rating: 430 kN

Inquire Now


SKF 22314E/C3 Bearing

SKF 22314E/C3 Bearing details

model 22314E/C3
d 70 mm
D 150 mm
B 51 mm
d2 90.3 mm
D1 128 mm
b 8.3 mm
K 4.5 mm
r1,2 min. 2.1 mm

da min 82 mm
Da max 138 mm
ra max 2 mm

C 413 kN, Basic dynamic load rating
C0 430 kN, Basic static load rating
Pu 45 kN, Fatigue load limit
Reference speed 3400 r/min
Limiting speed 4500 r/min
e 0.33, Calculation factor
Y1 2, Calculation factor
Y2 3, Calculation factor
Y0 2, Calculation factor
Mass 4.55 kg

SKF 22314E/C3 roller bearings, C3 internal clearance, SKF Explorer, Spherical roller bearings.

SKF 22314E/C3 bearing cross reference

FAG 22314-E1-XL bearing
70mm x 150mm x 51mm
SKF 21314E bearing
70mm x 150mm x 35mm
SKF 22214E bearing
70mm x 125mm x 31mm
SKF 22314E bearing
70mm x 150mm x 51mm
NSK 22314EAE4 bearing
70mm x 150mm x 51.0mm
NSK 22314EAKE4 bearing
70mm x 150mm x 51.0mm
FAG 22314-E1-XL-K bearing
70mm x 150mm x 51mm
NTN 22314EAD1 bearing
70mm x 150mm x 51mm
NTN 22314EMD1 bearing
70mm x 150mm x 51mm
NTN 22314EAKD1 bearing
70mm x 150mm x 51mm
NTN 22314EMKD1 bearing
70mm x 150mm x 51mm
