SKF 22338 CCJA/W33VA405 Bearing

22338 CCJA/W33VA405 SKF roller bearing for vibratory applica

Also known as :

• Inside Diameter: 190 mm
• Outside Diameter: 400 mm
• Width: 132 mm
• Basic dynamic load rating: 2232 kN
• Basic static load rating: 2650 kN

Inquire Now

SKF 22338 CCJA/W33VA405 Bearing

22338 CCJA/W33VA405 SKF

Part Number	22338 CCJA/W33VA405
Brand	SKF
Description	Spherical roller bearing for vibratory applications, with relubrication features
Bore type	Cylindrical
Tolerance class for dimensions	Normal, bore to P5 and outside diameter P6
Tolerance class for run-out	Normal
Radial internal clearance	C4
Cage	Surface-hardened sheet metal

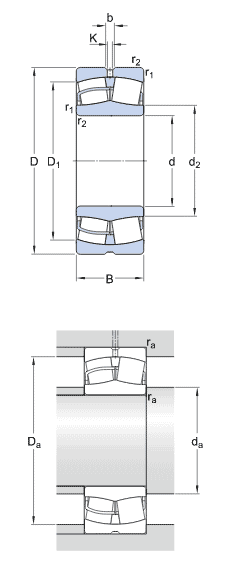

Dimensions
d	190 mm	Bore diameter
D	400 mm	Outside diameter
B	132 mm	Width
d2	236 mm	Shoulder diameter of inner ring
D1	333 mm	Shoulder/recess diameter of outer ring
b	22.3 mm	Width of lubrication groove
K	12 mm	Diameter of lubrication hole
r1,2	min. 5 mm	Chamfer dimension
Abutment dimensions
da	min. 210 mm	Diameter of shaft abutment
Da	max. 380 mm	Diameter of housing abutment
ra	max. 4 mm	Radius of fillet
Calculation data
C	2232 kN	Basic dynamic load rating
C0	2650 kN	Basic static load rating
Pu	208 kN	Fatigue load limit
Limiting speed	1600 r/min
Mass
Net Weight	78.6 kg
