SKF 23188CA/W33 spherical roller bearings
Also known as : 23188CA/W33, 23188-E1
- Inside Diameter: 440 mm
- Outside Diameter: 720 mm
- Width: 226 mm
- Basic dynamic load rating: 6215 kN
- Basic static load rating: 10000 kN
SKF 23188CA/W33 Bearing

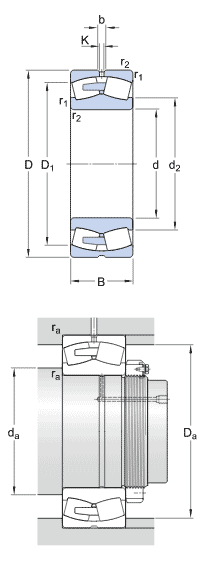

SKF 23188CA/W33 Bearing details
model | 23188CA/W33 |
---|---|
d | 440 mm |
D | 720 mm |
B | 226 mm |
d2 | 529 mm |
D1 | 632 mm |
b | 22.3 mm |
K | 12 mm |
r1,2 min. | 6 mm |
da min | 466 mm |
Da max | 694 mm |
ra max | 5 mm |
C | 6215 kN, Basic dynamic load rating |
C0 | 10000 kN, Basic static load rating |
Pu | 670 kN, Fatigue load limit |
Reference speed | 450 r/min |
Limiting speed | 850 r/min |
e | 0.3, Calculation factor |
Y1 | 2.3, Calculation factor |
Y2 | 3.4, Calculation factor |
Y0 | 2.2, Calculation factor |
Mass | 360 kg |
SKF 23188CA/W33 roller bearings, SKF Explorer, Spherical roller bearings.
