SKF NCF2916CV Bearing

SKF NCF2916CV roller bearings

Also known as : NCF2916CV, SL182916

  • Inside Diameter: 80 mm
  • Outside Diameter: 110 mm
  • Width: 19 mm
  • Basic dynamic load rating: 80.9 kN
  • Basic static load rating: 132 kN

Inquire Now


SKF NCF2916CV Bearing

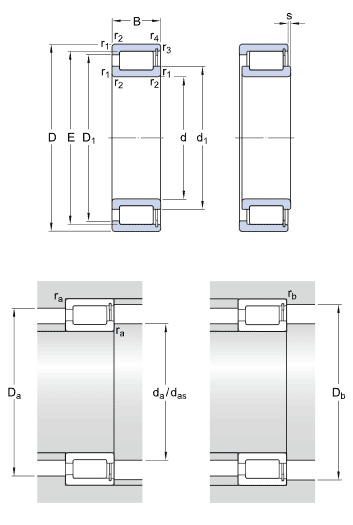

SKF NCF2916CV Bearing details

model NCF 2916 CV
d 80 mm
D 110 mm
B 19 mm
d1 90.5 mm
D1 99 mm
E 102.7 mm
smax 1 mm
r1,2 min. 1 mm
r3,4 min. 0.6 mm

da min 85 mm
das 88.6 mm
Da max 105 mm
ra max 1 mm
rb max 0.5 mm

C 80.9 kN, Basic dynamic load rating
C0 132 kN, Basic static load rating
Pu 15.6 kN, Fatigue load limit
Reference speed 2600 r/min
Limiting speed 3400 r/min
Kr 0.2, Calculation factor
e 0.3, Limiting value
Y 0.4, Axial load factor
Mass 0.55 kg

Nodes bearings, SKF full complement cylindrical roller bearings wholesaler, have SKF NCF 2916 CV roller bearings in stock, SKF Explorer, SKF Cylindrical roller bearings, single row, full complement.
