SKF NA4910.2RS needle bearings
Also known as : NA4910.2RS
- Inside Diameter: 50 mm
- Outside Diameter: 72 mm
- Width: 23 mm
- Basic dynamic load rating: 40.2 kN
- Basic static load rating: 69.5 kN
SKF NA4910.2RS Bearing

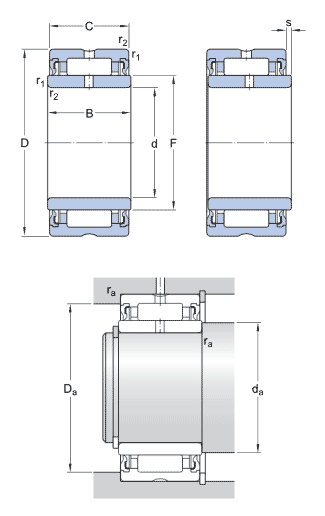

SKF NA4910.2RS Bearing details
| number | NA4910.2RS |
|---|---|
| d | 50 mm |
| D | 72 mm |
| B | 23 mm |
| C | 22 mm |
| F | 58 mm |
| r1,2 min. | 0.6 mm |
| s | 0.5 mm |
| da min. | 54 mm |
| Da max. | 68 mm |
| ra max. | 0.6 mm |
| Calculation data | |
| C | 40.2 kN, Basic dynamic load rating |
| C0 | 69.5 kN, Basic static load rating |
| Pu | 8.5 kN, Fatigue load limit |
| Limiting speed | 3400 r/min |
| Mass | 0.29 kg |
As SKF bearing distributor, Nodes bearings have SKF NA4910.2RS needle roller bearings in stock, SKF Needle roller bearings, with machined rings, with an inner ring.
SKF NA4910.2RS bearing cross reference
IKO NA4910 bearing
50mm * 72mm * 22mm
IKO NA4910UU bearing
50mm * 72mm * 22mm
INA NA4910-XL bearing
50mm x 72mm x 22mm
INA NA4910-2RSR-XL bearing
50mm x 72mm x 23mm
INA NA4910-RSR-XL bearing
50mm x 72mm x 23mm
