SKF RNA4913 needle bearings
Also known as : RNA4913
- Inside Diameter: 72 mm
- Outside Diameter: 90 mm
- Width: 25 mm
- Basic dynamic load rating: 61.6 kN
- Basic static load rating: 120 kN
SKF RNA4913 Bearing

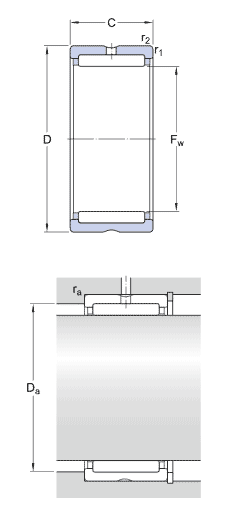

SKF RNA4913 Bearing details
| number | RNA4913 | |
|---|---|---|
| Fw | 72 mm | |
| D | 90 mm | |
| C | 25 mm | |
| r1,2 min. | 1 mm | |
| Da max. | 85 mm | |
| ra max. | 1 mm | |
| Radial shaft seal | 72x90x10 HMS5 RG | |
| Calculation data | ||
| C | 61.6 kN, Basic dynamic load rating | |
| C0 | 120 kN, Basic static load rating | |
| Pu | 14.6 kN, Fatigue load limit | |
| Reference speed | 5600 r/min | |
| Limiting speed | 6300 r/min | |
| Mass | 0.31 kg | |
As SKF bearing distributor, Nodes bearings have SKF RNA4913 needle roller bearings in stock, SKF Needle roller bearings, with machined rings, without an inner ring.
SKF RNA4913 bearing cross reference
IKO RNA4913 bearing
D:72mm * 90mm * 25mm
IKO RNA4913UU bearing
D:72mm * 90mm * 25mm
INA RNA4913-XL bearing
72mm x 90mm x 25mm
