SKF NJG2322VH roller bearings
Also known as : NJG2322VH
- Inside Diameter: 110 mm
- Outside Diameter: 240 mm
- Width: 80 mm
- Basic dynamic load rating: 858 kN
- Basic static load rating: 1060 kN
SKF NJG2322VH Bearing

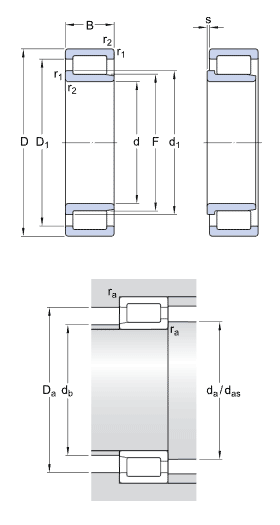

SKF NJG2322VH Bearing details
| model | NJG 2322 VH |
|---|---|
| d | 110 mm |
| D | 240 mm |
| B | 80 mm |
| d1 | 151 mm |
| D1 | 198 mm |
| F | 134.3 mm |
| smax | 5 mm |
| r1,2 min. | 3 mm |
| da min | 124 mm |
| das | 143 mm |
| db max | 130 mm |
| Da max | 225 mm |
| ra max | 2.5 mm |
| C | 858 kN, Basic dynamic load rating |
| C0 | 1060 kN, Basic static load rating |
| Pu | 122 kN, Fatigue load limit |
| Reference speed | 1100 r/min |
| Limiting speed | 1300 r/min |
| Kr | 0.35, Calculation factor |
| e | 0.3, Limiting value |
| Y | 0.4, Axial load factor |
| Mass | 17.5 kg |
Nodes bearings, SKF full complement cylindrical roller bearings wholesaler, have SKF NJG 2322 VH roller bearings in stock, SKF Explorer, SKF Cylindrical roller bearings, single row, full complement.
