SKF NNCF5044CV roller bearings
Also known as : NNCF5044CV, SL185044
- Inside Diameter: 220 mm
- Outside Diameter: 340 mm
- Width: 160 mm
- Basic dynamic load rating: 2010 kN
- Basic static load rating: 3600 kN
SKF NNCF5044CV Bearing

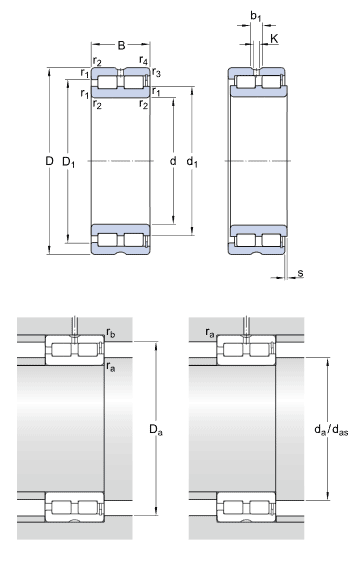

SKF NNCF5044CV Bearing details
| model | NNCF 5044 CV |
|---|---|
| d | 220 mm |
| D | 340 mm |
| B | 160 mm |
| d1 | 255.1 mm |
| D1 | 301.6 mm |
| b1 | 8 mm |
| K | 6 mm |
| smax | 9 mm |
| r1,2 min. | 3 mm |
| r3,4 min. | 3 mm |
| da min | 235 mm |
| das | 245 mm |
| Da max | 327 mm |
| ra max | 2.5 mm |
| rb max | 2.5 mm |
| C | 2010 kN, Basic dynamic load rating |
| C0 | 3600 kN, Basic static load rating |
| Pu | 375 kN, Fatigue load limit |
| Reference speed | 850 r/min |
| Limiting speed | 1000 r/min |
| Kr | 0.5, Calculation factor |
| Mass | 52.5 kg |
Nodes bearings, SKF double row full complement cylindrical roller bearings wholesaler, have SKF NNCF 5044 CV roller bearings in stock, SKF Explorer, SKF Cylindrical roller bearings, double row, full complement.
SKF NNCF5044CV bearing cross reference
