SKF NNF5005ADB-2LSV Bearing

SKF NNF5005ADB-2LSV roller bearings

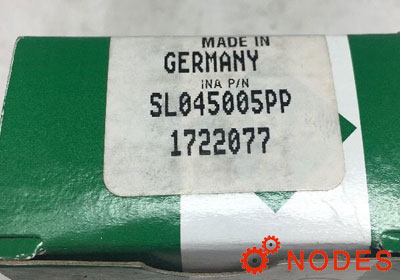

Also known as : NNF5005ADB-2LSV, SL045005pp

  • Inside Diameter: 25 mm
  • Outside Diameter: 47 mm
  • Width: 30 mm
  • Basic dynamic load rating: 50.1 kN
  • Basic static load rating: 65.5 kN

Inquire Now


SKF NNF5005ADB-2LSV Bearing

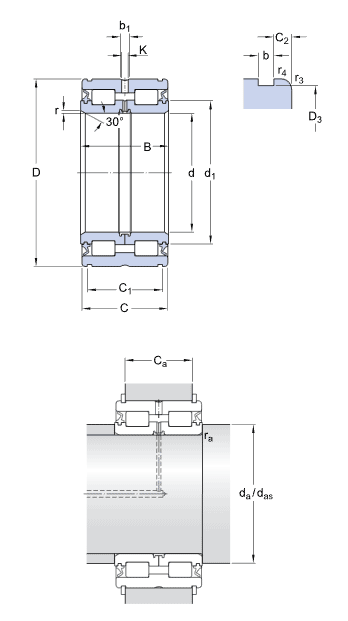

SKF NNF5005ADB-2LSV Bearing details

model NNF5005ADB-2LSV
d 25 mm
D 47 mm
B 30 mm
C 29 mm
d1 35.4 mm
D3 45.2 mm
C1 24.7 mm
C2 2.15 mm
b 1.8 mm
b1 6.5 mm
K 3.5 mm
r 0.5 mm
r3,4 min. 0.3 mm

da min 29 mm
das 33.6 mm
Ca1 21.5 mm
Ca2 21 mm
ra max 0.3 mm

Ca1 applies for SW snap rings and Ca2 for snap rings in accordance with DIN 471

C 50.1 kN, Basic dynamic load rating
C0 65.5 kN, Basic static load rating
Pu 6.8 kN, Fatigue load limit
Reference speed 3000 r/min
Limiting speed 3000 r/min
Kr 0.4, Calculation factor

Snap ring Seeger SW 47
Snap ring in accordance with DIN 471 47x1.75
Mass 0.24 kg

Nodes bearings, SKF double row full complement cylindrical roller bearings wholesaler, have SKF NNF5005ADB-2LSV roller bearings in stock, SKF Explorer, SKF Cylindrical roller bearings, double row, full complement.

SKF NNF5005ADB-2LSV bearing cross reference

INA SL045005-PP bearing
25mm x 47mm x 30mm
SKF N 205 ECP bearing
25mm x 52mm x 15mm
SKF NJ205ECJ bearing
25mm x 52mm x 15mm
SKF NJ205ECP bearing
25mm x 52mm x 15mm
SKF NJ2205ECP bearing
25mm x 52mm x 18mm
SKF NU205ECJ bearing
25mm x 52mm x 15mm
SKF NU205ECP bearing
25mm x 52mm x 15mm
SKF NU2305ECP bearing
25mm x 62mm x 24mm
SKF NUP205ECP bearing
25mm x 52mm x 15mm
SKF NUP305ECJ bearing
25mm x 62mm x 17mm
