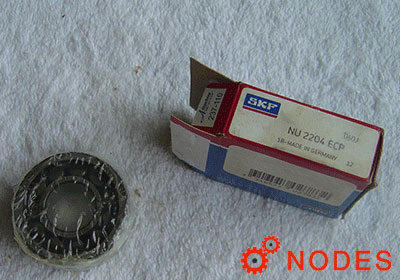

SKF NU2204ECP cylindrical roller bearings
Also known as : NU2204ECP, NU2204B-TVP
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 18 mm
- Basic dynamic load rating: 34.5 kN
- Basic static load rating: 27.5 kN
SKF NU2204ECP Bearing
SKF NU2204ECP Bearing details
| model | NU2204ECP |
|---|---|
| d | 20 mm |
| D | 47 mm |
| B | 18 mm |
| D1 | 38.3 mm |
| F | 26.5 mm |
| r1,2 min. | 1 mm |
| r3,4 min. | 0.6 mm |
| smax. | 2 mm |
| da min | 24 mm |
| da max | 25.4 mm |
| db min | 28 mm |
| Da max | 41.7 mm |
| ra max | 1 mm |
| rb max | 0.6 mm |
| C | 34.5 kN, Basic dynamic load rating |
| C0 | 27.5 kN, Basic static load rating |
| Pu | 3.45 kN, Fatigue load limit |
| Reference speed | 17000 r/min |
| Limiting speed | 19000 r/min |
| Kr | 0.2, Calculation factor |
| e | 0.3, Limiting value |
| Y | 0.4, Axial load factor |
| Angle ring | |
| Mass | 0.14 kg |
Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU2204ECP roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.
SKF NU2204ECP bearing cross reference
NSK NU2204 bearing
20mm x 47mm x 18mm
NSK NU2204ET bearing
20mm x 47mm x 18mm
FAG NU2204-E-XL-TVP2 bearing
20mm x 47mm x 18mm
SKF N 304 ECP bearing
20mm x 52mm x 15mm

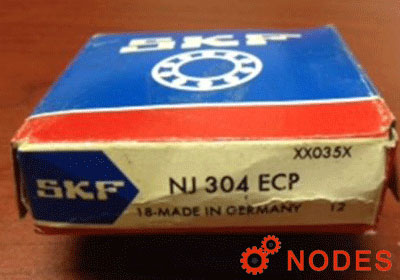

SKF NJ304ECP bearing
20mm x 52mm x 15mm

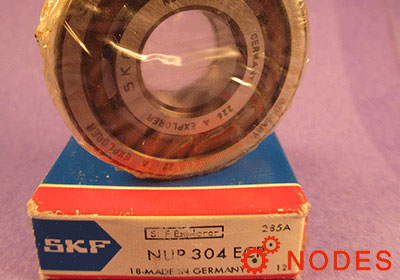

SKF NUP304ECP bearing
20mm x 52mm x 15mm

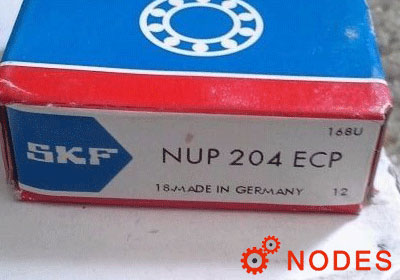

SKF NUP204ECP bearing
20mm x 47mm x 14mm
SKF NCF3004CV bearing
20mm * 42mm *16mm
