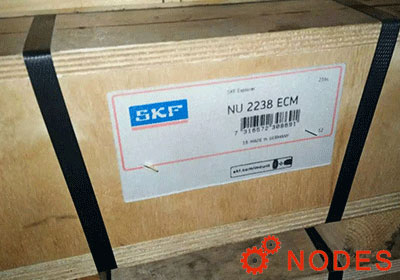

SKF NU2238ECM cylindrical roller bearings
Also known as : NU2238ECM, NU2238B-MP
- Inside Diameter: 190 mm
- Outside Diameter: 340 mm
- Width: 92 mm
- Basic dynamic load rating: 1220 kN
- Basic static load rating: 1600 kN
SKF NU2238ECM Bearing
SKF NU2238ECM Bearing details
| model | NU2238ECM |
|---|---|
| d | 190 mm |
| D | 340 mm |
| B | 92 mm |
| D1 | 295.2 mm |
| F | 228 mm |
| r1,2 min. | 4 mm |
| r3,4 min. | 4 mm |
| smax. | 5 mm |
| da min | 207 mm |
| da max | 224 mm |
| db min | 231 mm |
| Da max | 321.9 mm |
| ra max | 3 mm |
| rb max | 3 mm |
| C | 1220 kN, Basic dynamic load rating |
| C0 | 1600 kN, Basic static load rating |
| Pu | 160 kN, Fatigue load limit |
| Reference speed | 2000 r/min |
| Limiting speed | 2200 r/min |
| Kr | 0.2, Calculation factor |
| e | 0.3, Limiting value |
| Y | 0.4, Axial load factor |
| Angle ring | |
| Mass | 38 kg |
Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU2238ECM roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row. More related SKF bearings see: SKF cylindrical roller bearings catalogue.
SKF NU2238ECM bearing cross reference
NSK NU2238 bearing
190mm x 340mm x 92mm
FAG NU2238-E-M1 bearing
190mm x 340mm x 92mm
NTN NU2238E bearing
190mm x 340mm x 92mm
