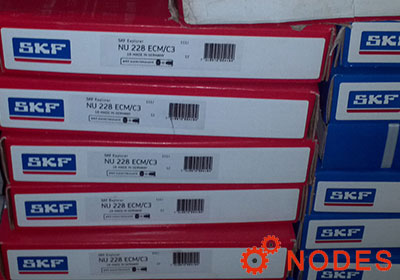

SKF NU228ECM/C3 Bearing

SKF NU228ECM/C3 cylindrical roller bearings

Also known as : NU228ECM/C3, NU228B-MP

  • Inside Diameter: 140 mm
  • Outside Diameter: 250 mm
  • Width: 42 mm
  • Basic dynamic load rating: 450 kN
  • Basic static load rating: 510 kN

Inquire Now


SKF NU228ECM/C3 Bearing

SKF NU228ECM/C3 Bearing details

model NU228ECM/C3
d 140 mm
D 250 mm
B 42 mm
D1 215.78 mm
F 169 mm
r1,2 min. 3 mm
r3,4 min. 3 mm
smax. 2.5 mm

da min 154 mm
da max 165 mm
db min 172 mm
Da max 235 mm
ra max 2.5 mm
rb max 2.5 mm

C 450 kN, Basic dynamic load rating
C0 510 kN, Basic static load rating
Pu 57 kN, Fatigue load limit
Reference speed 2800 r/min
Limiting speed 3200 r/min
Kr 0.15, Calculation factor
e 0.2, Limiting value
Y 0.6, Axial load factor
Angle ring HJ 228 EC
Mass 9.41 kg

Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU228ECM/C3 roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.

SKF NU228ECM/C3 bearing cross reference

NSK NU228 bearing
140mm x 250mm x 42mm

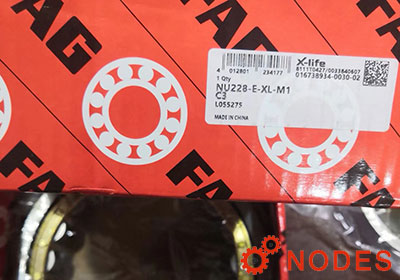

FAG NU228-E-XL-M1 bearing
140mm x 250mm x 42mm

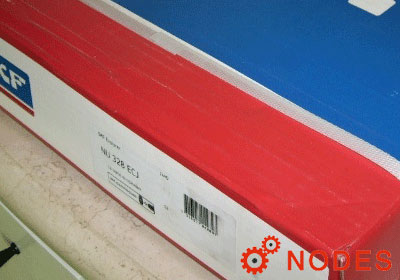

SKF NU328ECJ bearing
140mm x 300mm x 62mm
SKF NU2228ECML/C3 bearing
140mm x 250mm x 68mm
TIMKEN NU228EMA bearing
140mm x 250mm x 42mm
NTN NU228E bearing
140mm x 250mm x 42mm

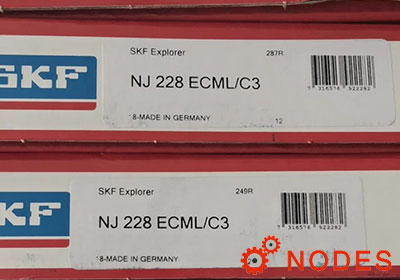

SKF NJ 228 ECML bearing
140.0x250.0x42.0mm

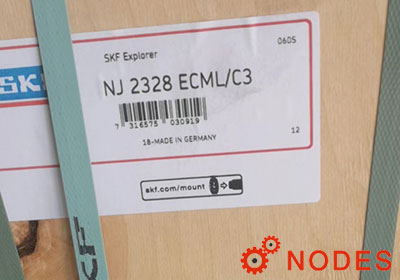

SKF NJ 2328 ECML bearing
140.0x300.0x102.0mm
