SKF NU230ECM Bearing

SKF NU230ECM cylindrical roller bearings

Also known as : NU230ECM, NU230B-MP

Inside Diameter: 150 mm
Outside Diameter: 270 mm
Width: 45 mm
Basic dynamic load rating: 510 kN
Basic static load rating: 600 kN

SKF NU230ECM Bearing

SKF NU230ECM Bearing details

model	NU230ECM
d	150 mm
D	270 mm
B	45 mm
D₁	232.2 mm
F	182 mm
r_{1,2 min.}	3 mm
r_{3,4 min.}	3 mm
s_max.	2.5 mm

d_{a min}	164 mm
d_{a max}	178 mm
d_{b min}	186 mm
D_{a max}	254.6 mm
r_{a max}	2.5 mm
r_{b max}	2.5 mm

C	510 kN, Basic dynamic load rating
C₀	600 kN, Basic static load rating
P_u	64 kN, Fatigue load limit
Reference speed	2600 r/min
Limiting speed	2800 r/min
K_r	0.15, Calculation factor
e	0.2, Limiting value
Y	0.6, Axial load factor
Angle ring	HJ 230 EC
Mass	11.6 kg

Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU230ECM roller bearings in stock, SKF Explorer, SKF Cylindrical roller bearings, single row.

SKF NU230ECM bearing cross reference

NSK NU230 bearing
150mm x 270mm x 45mm

FAG NU230-E-XL-M1-C3 bearing
150mm x 270mm x 45mm

SKF NU230ECJ bearing
150mm x 270mm x 45mm

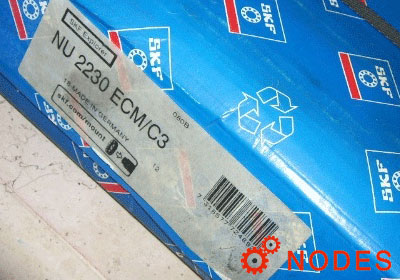

SKF NU2230ECM/C3 bearing
150mm x 270mm x 73mm

TIMKEN NU230EMA bearing
150mm x 270mm x 45mm

NTN NU230E bearing
150mm x 270mm x 45mm

SKF NU1030M/C3VL0241 bearing
150 x 225 x 35 mm
