SKF NU303ECP cylindrical roller bearings
Also known as : NU303ECP, NU303B-TVP
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 20.4 kN

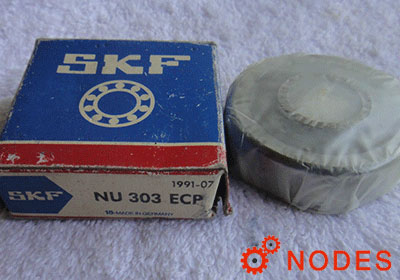

SKF NU303ECP Bearing
SKF NU303ECP Bearing details
| model | NU303ECP |
|---|---|
| d | 17 mm |
| D | 47 mm |
| B | 14 mm |
| D1 | 36.75 mm |
| F | 24.2 mm |
| r1,2 min. | 1 mm |
| r3,4 min. | 0.6 mm |
| smax. | 1 mm |
| da min | 21.1 mm |
| da max | 23.1 mm |
| db min | 26 mm |
| Da max | 41.7 mm |
| ra max | 1 mm |
| rb max | 0.6 mm |
| C | 28.5 kN, Basic dynamic load rating |
| C0 | 20.4 kN, Basic static load rating |
| Pu | 2.55 kN, Fatigue load limit |
| Reference speed | 17000 r/min |
| Limiting speed | 20000 r/min |
| Kr | 0.15, Calculation factor |
| e | 0.2, Limiting value |
| Y | 0.6, Axial load factor |
| Angle ring | |
| Mass | 0.12 kg |
Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU303ECP roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.
SKF NU303ECP bearing cross reference
FAG NU303-E-XL-TVP2 bearing
17mm x 47mm x 14mm
