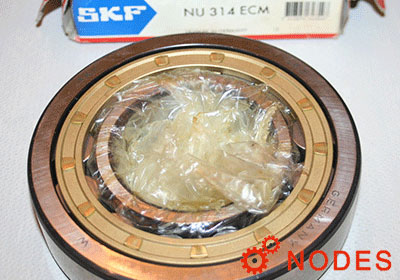

SKF NU314ECM Bearing

SKF NU314ECM cylindrical roller bearings

Also known as : NU314ECM, NU314B-MP

  • Inside Diameter: 70 mm
  • Outside Diameter: 150 mm
  • Width: 35 mm
  • Basic dynamic load rating: 236 kN
  • Basic static load rating: 228 kN

Inquire Now


SKF NU314ECM Bearing

SKF NU314ECM Bearing details

model NU314ECM
d 70 mm
D 150 mm
B 35 mm
D1 125.6 mm
F 89 mm
r1,2 min. 2.1 mm
r3,4 min. 2.1 mm
smax. 1.8 mm

da min 82 mm
da max 86 mm
db min 92 mm
Da max 137.5 mm
ra max 2 mm
rb max 2 mm

C 236 kN, Basic dynamic load rating
C0 228 kN, Basic static load rating
Pu 29 kN, Fatigue load limit
Reference speed 4800 r/min
Limiting speed 5600 r/min
Kr 0.15, Calculation factor
e 0.2, Limiting value
Y 0.6, Axial load factor
Angle ring HJ 314 EC
Mass 3.17 kg

Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU314ECM roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.

SKF NU314ECM bearing cross reference

NSK NU314 bearing
70mm x 150mm x 35mm
NSK NU314EM bearing
70mm x 150mm x 35mm
FAG NU314-E-XL-TVP2 bearing
70mm x 150mm x 35mm

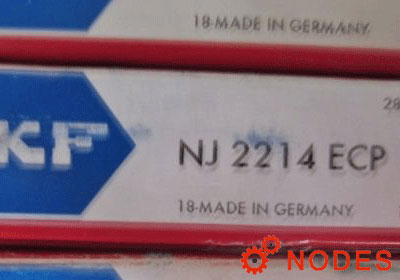

SKF NJ2214ECP bearing
70mm x 125mm x 31mm

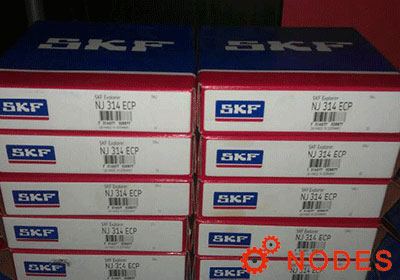

SKF NJ314ECP bearing
70mm x 150mm x 35mm

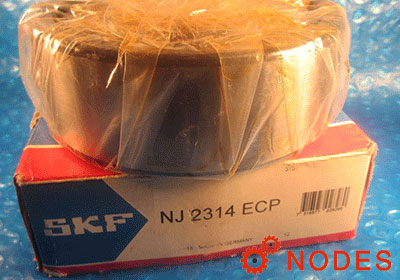

SKF NJ2314ECP bearing
70mm x 150mm x 51mm
SKF NU2214ECP bearing
70mm x 125mm x 31mm

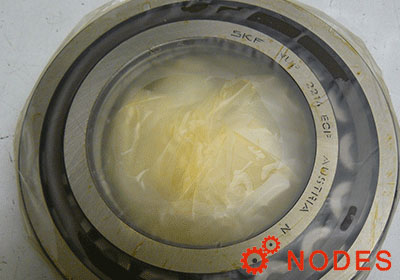

SKF NUP2214ECP bearing
70mm x 125mm x 31mm

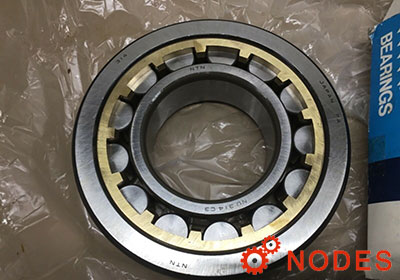

NTN NU314 bearing
70mm x 150mm x 35mm

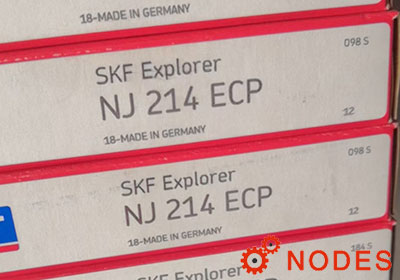

SKF NJ 214 ECP bearing
