SKF NU317ECP cylindrical roller bearings
Also known as : NU317ECP, NU317B-TVP
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 41 mm
- Basic dynamic load rating: 340 kN
- Basic static load rating: 335 kN

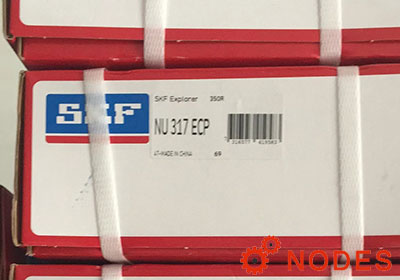

SKF NU317ECP Bearing
SKF NU317ECP Bearing details
| model | NU317ECP |
|---|---|
| d | 85 mm |
| D | 180 mm |
| B | 41 mm |
| D1 | 151.4 mm |
| F | 108 mm |
| r1,2 min. | 3 mm |
| r3,4 min. | 3 mm |
| smax. | 2.3 mm |
| da min | 99 mm |
| da max | 105 mm |
| db min | 111 mm |
| Da max | 165.5 mm |
| ra max | 2.5 mm |
| rb max | 2.5 mm |
| C | 340 kN, Basic dynamic load rating |
| C0 | 335 kN, Basic static load rating |
| Pu | 41.5 kN, Fatigue load limit |
| Reference speed | 4000 r/min |
| Limiting speed | 4800 r/min |
| Kr | 0.15, Calculation factor |
| e | 0.2, Limiting value |
| Y | 0.6, Axial load factor |
| Angle ring | HJ 317 EC |
| Mass | 4.64 kg |
Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NU317ECP roller bearings in stock, SKF Explorer, SKF Cylindrical roller bearings, single row.
SKF NU317ECP bearing cross reference
NSK NU317 bearing
85mm x 180mm x 41mm
NSK NU317EM bearing
85mm x 180mm x 41mm
FAG NU317-E-XL-TVP2 bearing
85mm x 180mm x 41mm

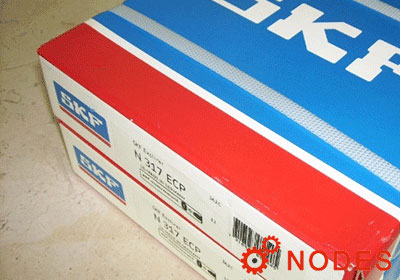

SKF N 317 ECP bearing
85mm x 180mm x 41mm
NTN NU317E bearing
85mm x 180mm x 41mm
SKF NU 217 ECM bearing
85x150x28mm
