SKF RNU203TN9 cylindrical roller bearings
Also known as : RNU203TN9, RNU203
- Inside Diameter: 22.9 mm
- Outside Diameter: 40 mm
- Width: 12 mm
- Basic dynamic load rating: 11.7 kN
- Basic static load rating: 9.5 kN
SKF RNU203TN9 Bearing

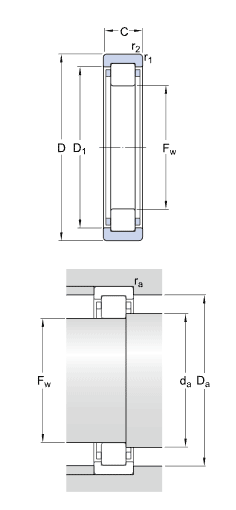

SKF RNU203TN9 Bearing details
| model | RNU203TN9 |
|---|---|
| Fw | 22.9 mm |
| D | 40 mm |
| C | 12 mm |
| D1 | 31.5 mm |
| r1,2 min. | 0.6 mm |
| da max | 25.48 mm |
| Da max | 36 mm |
| ra max | 0.6 mm |
| C | 11.7 kN, Basic dynamic load rating |
| C0 | 9.5 kN, Basic static load rating |
| Pu | 1.14 kN, Fatigue load limit |
| Reference speed | 19000 r/min |
| Limiting speed | 22000 r/min |
| Kr | 0.15, Calculation factor |
| e | 0.2, Limiting value |
| Y | 0.6, Axial load factor |
| Mass | 0.051 kg |
