SKF KR16 cam followers | Dimensions D:16mm, d:6mm, B:28mm
Also known as : KR16
- D: 16 mm
- d: 6 mm
- B: 28 mm
- Cr: 3.14 kN
- C0r: 3.2 kN
SKF KR16 Bearing
SKF KR16 Bearing details
| Number | KR 16 |
|---|---|
| Type | SKF cam follower |

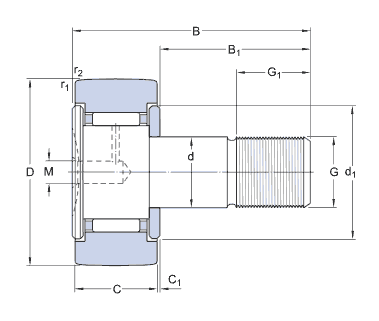

| Dimensions | |
| D | 16 mm |
| d | 6 mm |
| B | 28 mm |
| C | 11 mm |
| B1 | 16 mm |
| C1 | 0.6 mm |
| d1 | 12.5 mm |
| G | M 6 |
| G1 | 8 mm |
| M | 4 mm |
| r1,2 min | 0.15 mm |
| Calculation data | |
| Basic dynamic load rating, C | 3.14 KN |
| Basic static load rating, C0 | 3.2 KN |
| Fatigue load limit, Pu | 0.345 KN |
| Maximum dynamic radial loads, Fr max. | 2.9 KN |
| Maximum static radial loads, F0r max. | 4.15 KN |
| Limiting speed | 6000 r/min |
| Mounting information | |
| Recommended tighthening torque | 3 N.M |
| Included products | |
| Grease fitting | NIP A1 |
| Hexagonal nut | M 6x1 |
| Associated products | |
| Plug | VD1 |
| Mass | |
| Mass cam follower | 0.019 kg |
SKF KR16 bearing cross reference

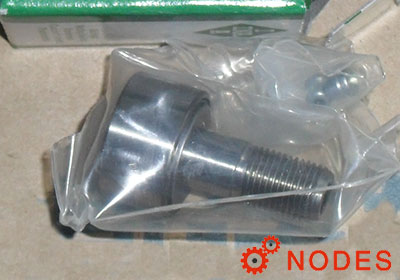

INA KR16-PP bearing
D:16mm, d1:6mm, B:28mm
INA KR16-SK-PP bearing
D:16mm, d1:6mm, B:28mm

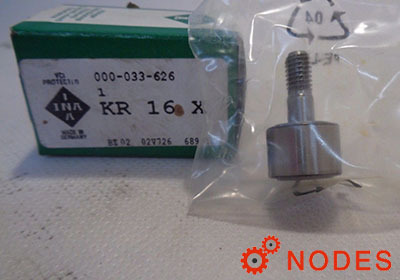

INA KR16 bearing
D:16mm, d1:6mm, B:28mm

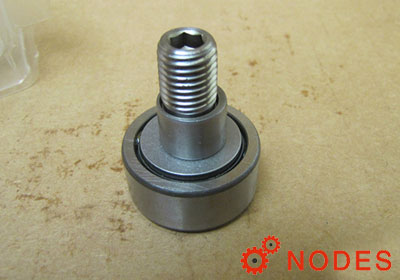

INA KRE16-PP bearing
D:16mm, de:9mm, B:28mm
IKO CF6BR bearing
D:16mm, d1:6mm, C:11mm
IKO CF6B bearing
D:16mm, d1:6mm, C:11mm
IKO CF6BUUR bearing
D:16mm, d1:6mm, C:11mm
IKO CF6BUU bearing
D:16mm, d1:6mm, C:11mm
IKO CF6FBR bearing
D:16mm, d1:16mm, C:11mm
IKO CF6FBUUR bearing
D:16mm, d1:16mm, C:11mm
