TIMKEN 205K Bearing

TIMKEN Fafnir 205K, 205KDD, 205KLL Deep groove ball bearings

Also known as : 205K, 205KDD, 205KLL

• Inside Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 15 mm
• Basic dynamic load rating: 16 kN
• Basic static load rating: 7.8 kN

Inquire Now

TIMKEN 205K Bearing

Bearing Number	205K
Brand	TIMKEN
Type	Deep groove ball bearings
Design Units	METRIC
Ball Type	Steel
Bearing Weight	0.127 Kg 0.28 lb
d - Bore	25.000 mm 0.9843 in
D - Outer Diameter	52.000 mm 2.0472 in
Bearing Width	15.000 mm 0.5906 in
do - Ball Diameter	7.937500 mm 0.312500 in
Ce - Dynamic Radial Rating1	16000 N 3600 lbf
C0 - Static Radial Rating	7800 N 1760 lbf
Limiting Speed (Grease)	7780 rpm
Limiting Speed (Oil)	9070 rpm
R - Inner Ring "To Clear" Radius2	1.000 mm 0.039 in
r - Outer Ring "To Clear" Radius3	1.000 mm 0.039 in
da - Inner Ring Backing Diameter	29.000 mm 1.140 in
Da - Outer Ring Backing Diameter	46.000 mm 1.810 in

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 205K bearings in stock. Radial ball bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type bearing has a deep-groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation.

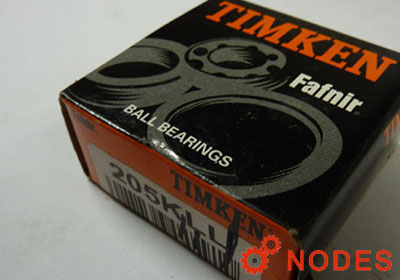

LL: two mechani-seals

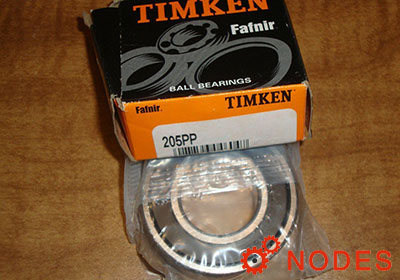

205PP, PP: two seals
