TIMKEN 61809-C3 Deep Groove Ball Bearings | 45x58x7mm
Also known as : 61809-C3
- Inside Diameter: 45 mm
- Outside Diameter: 58 mm
- Width: 7 mm
- Basic dynamic load rating: 6.2 kN
- Basic static load rating: 5.4 kN
TIMKEN 61809-C3 Bearing
TIMKEN 61809-C3 Bearing details
| Bearing Number | 61809-C3 |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C3 |
| Bore Size d | 45.000 mm |
| Features | Open |
| Weight | 0.034 Kg |
| Outside Diameter D | 58.000 mm |
| Outside Ring Width B | 7.000 mm |
| Radius Rs min | 0.300 mm |
| Cr - Dynamic Load Rating | 6.2 kN |
| C0r - Static Load Rating | 5.4 kN |
| Grease Limiting Speed | 11000 rpm |
| Oil Limiting Speed | 13000 rpm |
As TIMKEN bearing distributor, Nodes bearings have TIMKEN 61809-C3 bearings in stock. Timken 61000 thin section series have bore sizes that range from 10 to 65 mm and outside diameter sizes that range from 18 to 90mm.
TIMKEN 61809-C3 bearing cross reference
NSK 6809 bearing
45mm x 58mm x 7mm
NSK 6809VV bearing
45mm x 58mm x 7mm
FAG 61809-Y bearing
45mm x 58mm x 7mm
FAG 61809-2RSR-Y bearing
45mm x 58mm x 7mm
TIMKEN 6009-2RS bearing
45mm x 75mm x 16mm

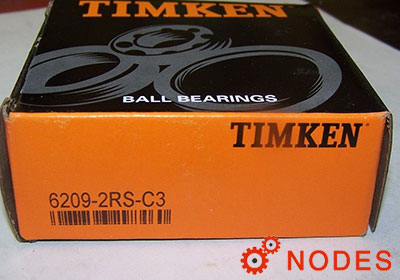

TIMKEN 6209-2RS-C3 bearing
45mm x 85mm x 19mm

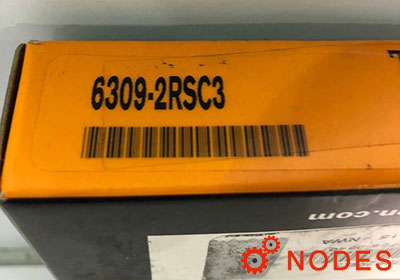

TIMKEN 6309-2RS-C3 bearing
45mm x 100mm x 25mm
TIMKEN 6309M-2RS-C3 bearing
45mm x 100mm x 25mm
TIMKEN 6009-2RS-NR bearing
45mm x 75mm x 16mm
TIMKEN 6209-2RS-NR bearing
45mm x 85mm x 19mm
TIMKEN 6009-N bearing
45mm x 75mm x 16mm
