TIMKEN NU1052AMAWEW37R Cylindrical Roller Bearings
Also known as : NU1052AMAWEW37R
- Inside Diameter: 260 mm
- Outside Diameter: 400 mm
- Width: 65 mm
- Basic dynamic load rating: 737 kN
- Basic static load rating: 1040 kN

TIMKEN NU1052AMAWEW37R Bearing
TIMKEN NU1052AMAWEW37R Bearing details
Bearing Number | NU1052AMAWEW37R |
---|---|
Brand | TIMKEN |
Type | Cylindrical roller bearings |
Design Units | METRIC |
Bearing Weight |
29.200 Kg 64.40 lb |
Type |
N U |
Tapered Bore | N |
d - Bore |
260 mm 10.2362 in |
D - Outer Diameter |
400.000 mm 15.7480 in |
C - Inner Ring Width |
65.000 mm 2.5591 in |
B - Outer Ring Width |
65.000 mm 2.5591 in |
C0 - Static Radial Rating |
1040000 N 234000 lbf |
C - Dynamic Radial Rating1 |
737000 N 166000 lbf |
Reference Thermal Speed Rating (Grease) | 1400 |
Reference Thermal Speed Rating (Oil)2 | 1700 |
Cg - Geometry Factor3 | 0.1483 |
R - Inner Ring "To Clear" Radius4 |
3.000 mm 0.100 in |
r - Outer Ring "To Clear" Radius5 |
3.000 mm 0.100 in |
da - Inner Ring Backing Diameter |
286.000 mm 11.300 in |
Da - Outer Ring Backing Diameter |
0.000 mm 0.000 in |
1 Based on 1 X 106 L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.
As TIMKEN bearing distributor, Nodes bearings have TIMKEN NU1052AMAWEW37R bearings in stock.

TIMKEN NU1052AMAWEW37R bearing cross reference

NSK NU1052 bearing
260mm x 400mm x 65mm

FAG NU1052-M1 bearing
260mm x 400mm x 65mm

TIMKEN NU1052MA bearing
260mm x 400mm x 65mm

TIMKEN NU3052EMA bearing
260mm x 400mm x 104mm

TIMKEN 260RU30OC1268R3 bearing
260mm x 400mm x 104mm

TIMKEN 260RU92OA1175R3 bearing
260mm x 480mm x 158.750mm

NTN NU1052 bearing
260mm x 400mm x 65mm

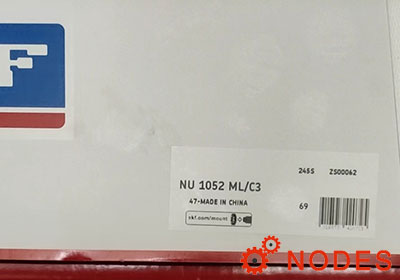

SKF NU 1052 ML/C3 bearing
260x400x65mm
